300-30-04-GR-0100F

Obsolete

CnC Tech, LLC

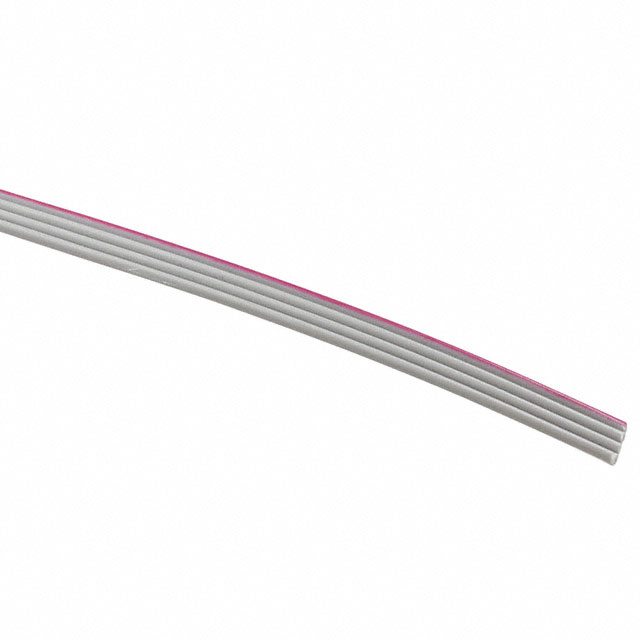

FLAT RIBBON CABLE POLYVINYL CHLORIDE 4CONDUCTORS 30AWG 150V 30.48M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC, Flat Ribbon Cable Mating Chart Datasheet

300-30-04-GR-0100F

Obsolete

CnC Tech, LLC

FLAT RIBBON CABLE POLYVINYL CHLORIDE 4CONDUCTORS 30AWG 150V 30.48M

Deep-Dive with AI

DocumentsIDC, Flat Ribbon Cable Mating Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	300-30-04-GR-0100F

Cable Type	Flat Cable
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	4
Operating Temperature	105 C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL Style 2678
Ribbon Thickness	0.026 in
Ribbon Thickness	0.66 mm
Ribbon Width	6.35 mm
Ribbon Width	0.25 in
Shielding	Unshielded
Voltage	150 V
Wire Gauge	30 AWG

300-30 Series

Part	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Cable Type	Ratings	Wire Gauge	Number of Conductors	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Length	Length	Voltage	Shielding	Insulation Resistance	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	First Conductor Mark	Jacket Color	Operating Temperature	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Spool Size [x]	Spool Size [x]	Length	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]
CnC Tech, LLC 300-30-16-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	16	0.64 mm	0.025 in	3.05 m	10 ft	7.62 m 15.24 m 76.2 m 304.8 mm	1 ft 25 ft 50 ft 3000 "	150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C	0.4 in	10.16 mm
CnC Tech, LLC 300-30-14-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	14	0.64 mm	0.025 in	3.05 m	10 ft	7.62 m 15.24 m 76.2 m 304.8 mm	1 ft 25 ft 50 ft 3000 "	150 V	Unshielded	100 MOhms	Copper Tinned	7	38 AWG	Red	Gray	105 C			8.89 mm	0.35 "
CnC Tech, LLC 300-30-20-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	20	0.64 mm	0.025 in	3.05 m	10 ft	15.24 m 76.2 m	50 ft 3000 "	150 V	Unshielded	1 GOhms 100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C					76.2 m	250 ft	Enter Number of Feet in Order Quantity	0.5 "	12.7 mm
CnC Tech, LLC 300-30-10-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	10	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Tinned	7	38 AWG	Red	Gray	105 C	0.25 in	6.35 mm
CnC Tech, LLC 300-30-14-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	14	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C			8.89 mm	0.35 "
CnC Tech, LLC 300-30-04-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	4	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C	0.25 in	6.35 mm
CnC Tech, LLC 300-30-26-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	26	0.64 mm	0.025 in	3.05 m	10 ft	15.24 m 76.2 m 304.8 mm	1 ft 50 ft 3000 "	150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C	0.65 in	16.51 mm
CnC Tech, LLC 300-30-40-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	40	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C		1 in								25.4 mm
CnC Tech, LLC 300-30-50-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	50	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C											1.25 "	31.75 mm
CnC Tech, LLC 300-30-50-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	50	0.64 mm	0.025 in			76.2 m	3000 "	150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C											1.25 "	31.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

300-30 Series

Flat Ribbon Cable Gray 4 Conductors 0.025" (0.64mm) Flat Cable 100.0' (30.48m)

Documents

Technical documentation and resources

IDC, Flat Ribbon Cable Mating Chart

Datasheet
