300-30-14-GR-0250F

Unknown

CnC Tech, LLC

CBL RIBN 14COND 0.025 GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IDC, Flat Ribbon Cable Mating Chart

300-30-14-GR-0250F

Unknown

CnC Tech, LLC

CBL RIBN 14COND 0.025 GRAY 50'

Deep-Dive with AI

DocumentsDatasheet IDC, Flat Ribbon Cable Mating Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	300-30-14-GR-0250F

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	25 ft, 1 ft, 50 ft, 3000 "
Length	7.62 m, 304.8 mm, 15.24 m, 76.2 m
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	14
Operating Temperature	105 C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL Style 2678
Ribbon Thickness	0.026 in
Ribbon Thickness	0.66 mm
Ribbon Width [y]	8.89 mm
Ribbon Width [y]	0.35 "
Shielding	Unshielded
Voltage	150 V
Wire Gauge	30 AWG

300-30 Series

Part	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Cable Type	Ratings	Wire Gauge	Number of Conductors	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Length	Length	Voltage	Shielding	Insulation Resistance	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	First Conductor Mark	Jacket Color	Operating Temperature	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Spool Size [x]	Spool Size [x]	Length	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]
CnC Tech, LLC 300-30-16-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	16	0.64 mm	0.025 in	3.05 m	10 ft	7.62 m 15.24 m 76.2 m 304.8 mm	1 ft 25 ft 50 ft 3000 "	150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C	0.4 in	10.16 mm
CnC Tech, LLC 300-30-14-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	14	0.64 mm	0.025 in	3.05 m	10 ft	7.62 m 15.24 m 76.2 m 304.8 mm	1 ft 25 ft 50 ft 3000 "	150 V	Unshielded	100 MOhms	Copper Tinned	7	38 AWG	Red	Gray	105 C			8.89 mm	0.35 "
CnC Tech, LLC 300-30-20-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	20	0.64 mm	0.025 in	3.05 m	10 ft	15.24 m 76.2 m	50 ft 3000 "	150 V	Unshielded	1 GOhms 100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C					76.2 m	250 ft	Enter Number of Feet in Order Quantity	0.5 "	12.7 mm
CnC Tech, LLC 300-30-10-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	10	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Tinned	7	38 AWG	Red	Gray	105 C	0.25 in	6.35 mm
CnC Tech, LLC 300-30-14-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	14	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C			8.89 mm	0.35 "
CnC Tech, LLC 300-30-04-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	4	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C	0.25 in	6.35 mm
CnC Tech, LLC 300-30-26-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	26	0.64 mm	0.025 in	3.05 m	10 ft	15.24 m 76.2 m 304.8 mm	1 ft 50 ft 3000 "	150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C	0.65 in	16.51 mm
CnC Tech, LLC 300-30-40-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	40	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C		1 in								25.4 mm
CnC Tech, LLC 300-30-50-GR-0100F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	50	0.64 mm	0.025 in	30.48 m	100 ft			150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C											1.25 "	31.75 mm
CnC Tech, LLC 300-30-50-GR-0250F	0.026 in	0.66 mm	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2678	30 AWG	50	0.64 mm	0.025 in			76.2 m	3000 "	150 V	Unshielded	100 MOhms	Copper Bare	7	38 AWG	Red	Gray	105 C											1.25 "	31.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.98
		1	$ 5.29
		1	$ 200.24
		2	$ 181.34
		2	$ 5.04
		3	$ 171.13
		5	$ 159.10
		5	$ 4.73
		5	$ 2.66
		7	$ 151.67
		10	$ 2.54
		10	$ 4.49
		10	$ 144.19
		20	$ 4.26
		25	$ 126.74
		25	$ 2.38
		50	$ 2.25
		50	$ 115.09
		50	$ 4.00
		100	$ 3.83
		100	$ 2.14
		200	$ 3.63
		250	$ 2.01
		500	$ 1.92
		500	$ 3.41
		1000	$ 1.82
	Spool	1	$ 31.11
		1	$ 8.52
		2	$ 29.64
		3	$ 8.01
		5	$ 7.61
		5	$ 27.86
		10	$ 26.39
		10	$ 7.25
		20	$ 25.25
		25	$ 6.81
		50	$ 23.62
		50	$ 6.45
		100	$ 6.17
		100	$ 22.48
		200	$ 21.34
		250	$ 5.78
		500	$ 21.18
		500	$ 5.50

Description

General part information

300-30 Series

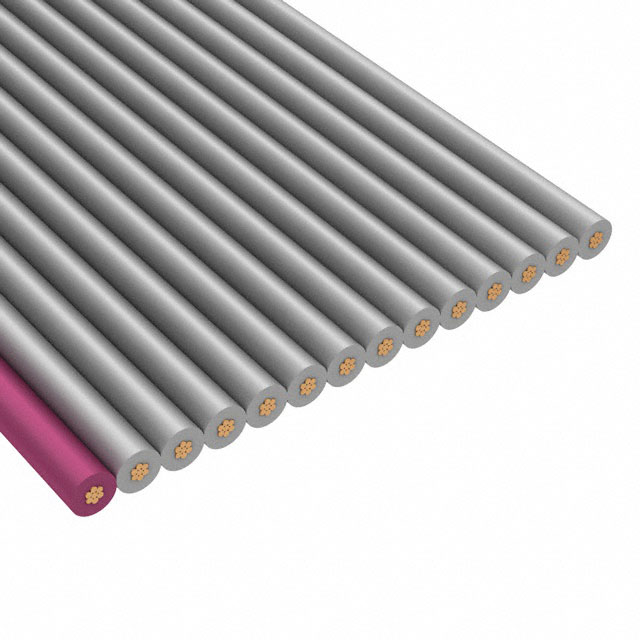

Flat Ribbon Cable Gray 14 Conductors 0.025" (0.64mm) Flat Cable 50.0' (15.24m)

Documents

Technical documentation and resources

Datasheet

IDC, Flat Ribbon Cable Mating Chart

Datasheet
