09140044513

Active

HARTING Technology Group

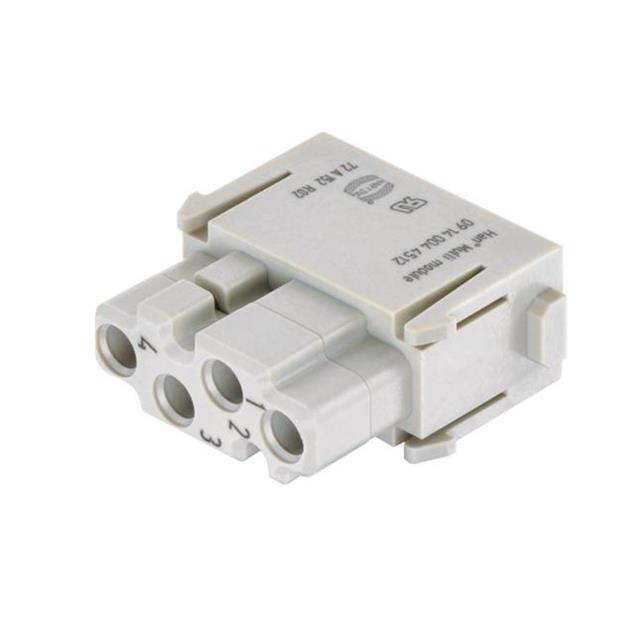

MODULE FEMALE 4POS CRIMP/SOLDER

Search across all available documentation for this part.

Active

HARTING Technology Group

MODULE FEMALE 4POS CRIMP/SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	09140044513

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han-Modular®
Current Rating (Amps)	1.5 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp and Solder
Voltage Rating	50 V

Part	Gender	Termination Style	Material Flammability Rating	Contact Type	Number of Positions	Housing Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Current Rating (Amps)	Voltage Rating
HARTING Technology Group 09140044501	Male	Crimp and Solder	UL94 V-0	Han-Modular®	4	Polycarbonate (PC)	Module without Contacts	125 °C	-40 °C	Gray
HARTING Technology Group 09140044711	Female		UL94 V-0	Fiber Optic SC	4	Polycarbonate (PC)	Module without Contacts	85 °C	-40 °C	Gray
HARTING Technology Group 09140044514
HARTING Technology Group 09140044513	Female	Crimp and Solder	UL94 V-0	Han-Modular®	4	Polycarbonate (PC)	Module without Contacts	125 °C	-40 °C	Gray	1.5 A	50 V
HARTING Technology Group 09140044701	Male		UL94 V-0	Fiber Optic SC	4	Polycarbonate (PC)	Module without Contacts	85 °C	-40 °C	Gray
HARTING Technology Group 09140044713	Female	Crimp	UL94 V-0	Fiber Optic SC	4	Polycarbonate (PC)	Module Fiber Optic - SC	85 °C	-40 °C	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts Gray 4 Position Crimp and Solder
