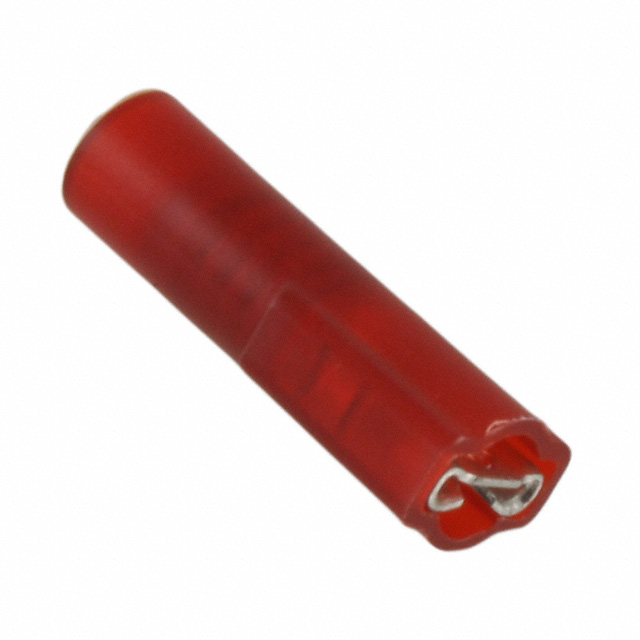

MNU18-187DFIK - MNU18-187DFIK

MNU18-187DFIK

Active
3M (TC)

QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 4.75MM X 0.51MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
MNU18-187DFIK - MNU18-187DFIK

MNU18-187DFIK

Active
3M (TC)

QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 4.75MM X 0.51MM

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMNU18-187DFIK
ColorRed
Contact FinishTin
Contact MaterialBrass
FeaturesButted Seam
GenderFemale
InsulationFully Insulated
Insulation Diameter3.68 mm
Insulation Diameter [diameter]0.145 "
Length - Overall [x]20.57 mm
Length - Overall [x]0.81 in
Mounting TypeFree Hanging (In-Line)
Tab Thickness0.02 "
Tab Thickness0.51 mm
Tab Width4.75 mm
Tab Width0.187 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge [Max]22 AWG
Wire Gauge [Min]17.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.93
10$ 0.78
25$ 0.75
50$ 0.73
100$ 0.70
250$ 0.64
500$ 0.58
1000$ 0.51
3000$ 0.46
NewarkEach 1$ 1.07
10$ 1.00
25$ 0.90
50$ 0.80
100$ 0.77
250$ 0.70
500$ 0.67
1000$ 0.55

Description

General part information

MNU18 Series

0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
