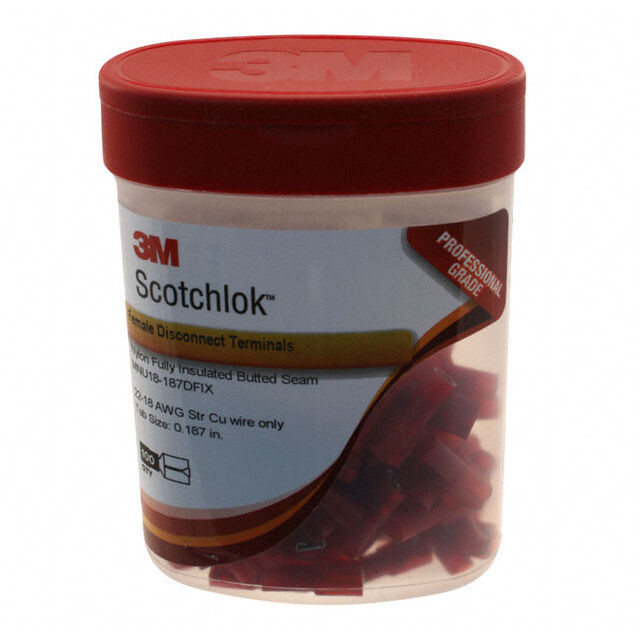

MNU18-187DFIX-BOTTLE

Active

3M (TC)

CONN QC RCPT 18-22AWG .187 100PC

Search across all available documentation for this part.

Active

3M (TC)

CONN QC RCPT 18-22AWG .187 100PC

Technical Specifications

Parameters and characteristics for this part

Specification	MNU18-187DFIX-BOTTLE

Color	Red
Contact Finish	Tin
Contact Material	Brass
Features	Butted Seam
Gender	Female
Insulation	Fully Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	20.57 mm
Length - Overall [x]	0.81 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Terminal Type	Gender	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Features	Length - Overall [x]	Length - Overall [x]	Insulation	Mounting Type	Termination	Contact Finish	Insulation Diameter	Insulation Diameter [diameter]	Tab Width	Tab Width	Color	Contact Material
3M (TC) MNU18-187DFIX-BOTTLE	Standard	Female	0.02 "	0.51 mm	22 AWG	17.5 AWG	Butted Seam	20.57 mm	0.81 in	Fully Insulated	Free Hanging (In-Line)	Crimp	Tin	3.68 mm	0.145 "	4.75 mm	0.187 in	Red	Brass
3M (TC) MNU18-250DFIK	Standard	Female	0.032 in	0.81 mm	22 AWG	17.5 AWG	Butted Seam	22.1 mm	0.87 in	Fully Insulated	Free Hanging (In-Line)	Crimp	Tin	3.68 mm	0.145 "	6.35 mm	0.25 in	Red	Brass
3M (TC) MNU18-187DFIK	Standard	Female	0.02 "	0.51 mm	22 AWG	17.5 AWG	Butted Seam	20.57 mm	0.81 in	Fully Insulated	Free Hanging (In-Line)	Crimp	Tin	3.68 mm	0.145 "	4.75 mm	0.187 in	Red	Brass
3M (TC) MNU18-250DFIX-BOTTLE	Standard	Female	0.032 in	0.81 mm	22 AWG	17.5 AWG	Butted Seam	22.1 mm	0.87 in	Fully Insulated	Free Hanging (In-Line)	Crimp	Tin	3.68 mm	0.145 "	6.35 mm	0.25 in	Red	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 109.54

General part information

0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated

Technical documentation and resources

No documents available
