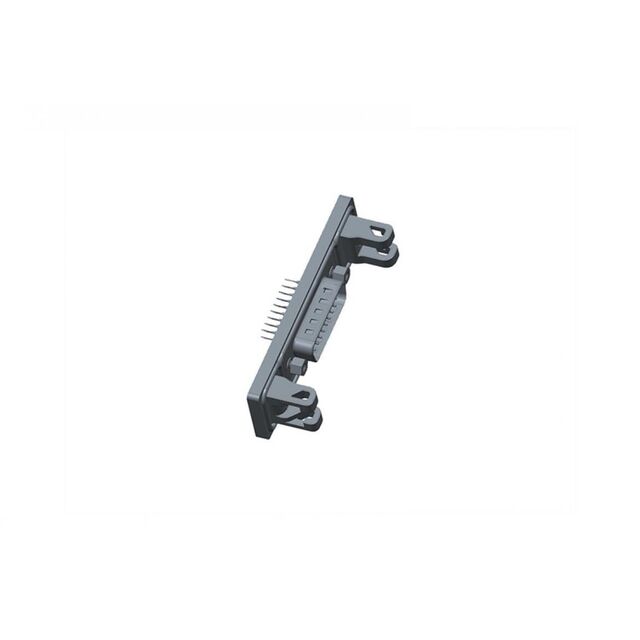

HDB-26PMMP-QL8001
ActiveAmphenol LTW
CONN D-SUB HD PLUG 26POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
HDB-26PMMP-QL8001
ActiveAmphenol LTW
CONN D-SUB HD PLUG 26POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDB-26PMMP-QL8001 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Automated Latch, Gasket, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
HDB-26PMMP Series
| Part | Contact Material | Connector Style | Mounting Type | Color | Current Rating (Amps) | Contact Type | Contact Finish Thickness | Flange Feature | Connector Type | Number of Rows | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Positions | Features | Shell Material, Finish | Ingress Protection | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Copper Alloy | D-Sub High Density | Panel Mount Right Angle Through Hole | Black | 2 A | Signal | Flash | Female Screwlock (4-40) Mating Side | Male Pins Plug | 3 | 2 | (DA A) High Density | 26 | Automated Latch Board Lock Gasket Grounding Indents Shielded | Nickel Plated Steel | IP68 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Solder | Gold | ||
Amphenol LTW | Copper Alloy | D-Sub High Density | Panel Mount Through Hole | Black | 2 A | Signal | Female Screwlock (4-40) Mating Side | Male Pins Plug | 3 | 2 | (DA A) High Density | 26 | Board Lock Grounding Indents Shielded | Nickel Plated Steel | IP68 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Solder | Gold | |||
Amphenol LTW | Copper Alloy | D-Sub High Density | Panel Mount Through Hole | Black | 2 A | Signal | Flash | Female Screwlock (4-40) Mating Side | Male Pins Plug | 3 | 2 | (DA A) High Density | 26 | Automated Latch Gasket Grounding Indents Shielded | Nickel Plated Steel | IP68 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Solder | Gold | ||
Amphenol LTW | Copper Alloy | D-Sub High Density | Panel Mount Right Angle Through Hole | Black | 2 A | Signal | Female Screwlock (4-40) Mating Side | Male Pins Plug | 3 | 2 | (DA A) High Density | 26 | Grounding Indents Shielded | Nickel Plated Steel | IP68 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Solder | Gold | 5.6 mm | 0.22 in | |
Amphenol LTW | Copper Alloy | D-Sub High Density | Panel Mount Through Hole | Black | 2 A | Signal | Female Screwlock (4-40) Mating Side | Male Pins Plug | 3 | 2 | (DA A) High Density | 26 | Grounding Indents Shielded | Nickel Plated Steel | IP68 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Solder | Gold | |||
Amphenol LTW | Copper Alloy | D-Sub High Density | Panel Mount Through Hole | Black | 2 A | Signal | Flash | Female Screwlock (4-40) Mating Side | Male Pins Plug | 3 | 2 | (DA A) High Density | 26 | Automated Latch Board Lock Gasket Grounding Indents Shielded | Nickel Plated Steel | IP68 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Solder | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 24.71 | |
Description
General part information
HDB-26PMMP Series
26 Position D-Sub, High Density Plug, Male Pins Connector
