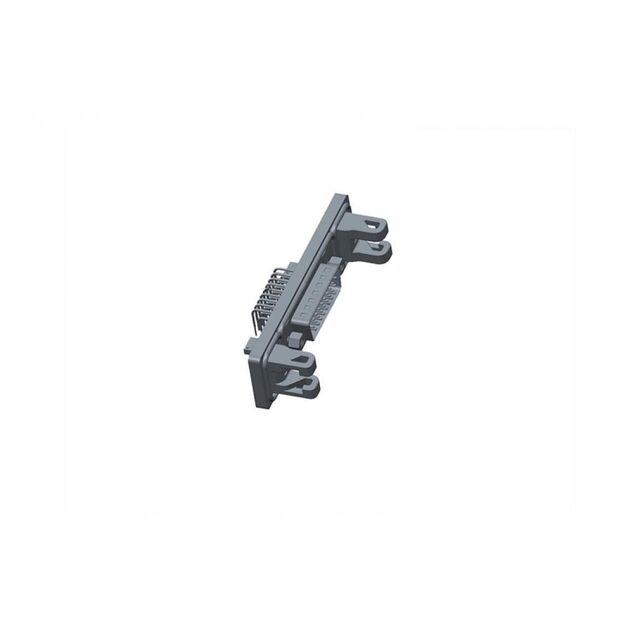

HDB-26PMMP-QB8001

Active

Amphenol LTW

CONN D-SUB HD PLUG 26P R/A SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-26PMMP-QB8001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock, Automated Latch, Shielded, Gasket, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

HDB-26PMMP Series

Part	Contact Material	Connector Style	Mounting Type	Color	Current Rating (Amps)	Contact Type	Contact Finish Thickness	Flange Feature	Connector Type	Number of Rows	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions	Features	Shell Material, Finish	Ingress Protection	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish	Backset Spacing	Backset Spacing
Amphenol LTW HDB-26PMMP-QB8001	Copper Alloy	D-Sub High Density	Panel Mount Right Angle Through Hole	Black	2 A	Signal	Flash	Female Screwlock (4-40) Mating Side	Male Pins Plug	3	2	(DA A) High Density	26	Automated Latch Board Lock Gasket Grounding Indents Shielded	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Solder	Gold
Amphenol LTW HDB-26PMMP-SA8001	Copper Alloy	D-Sub High Density	Panel Mount Through Hole	Black	2 A	Signal		Female Screwlock (4-40) Mating Side	Male Pins Plug	3	2	(DA A) High Density	26	Board Lock Grounding Indents Shielded	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Solder	Gold
Amphenol LTW HDB-26PMMP-QL8001	Copper Alloy	D-Sub High Density	Panel Mount Through Hole	Black	2 A	Signal	Flash	Female Screwlock (4-40) Mating Side	Male Pins Plug	3	2	(DA A) High Density	26	Automated Latch Gasket Grounding Indents Shielded	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Solder	Gold
Amphenol LTW HDB-26PMMP-SR8001	Copper Alloy	D-Sub High Density	Panel Mount Right Angle Through Hole	Black	2 A	Signal		Female Screwlock (4-40) Mating Side	Male Pins Plug	3	2	(DA A) High Density	26	Grounding Indents Shielded	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Solder	Gold	5.6 mm	0.22 in
Amphenol LTW HDB-26PMMP-SL8001	Copper Alloy	D-Sub High Density	Panel Mount Through Hole	Black	2 A	Signal		Female Screwlock (4-40) Mating Side	Male Pins Plug	3	2	(DA A) High Density	26	Grounding Indents Shielded	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Solder	Gold
Amphenol LTW HDB-26PMMP-QA8001	Copper Alloy	D-Sub High Density	Panel Mount Through Hole	Black	2 A	Signal	Flash	Female Screwlock (4-40) Mating Side	Male Pins Plug	3	2	(DA A) High Density	26	Automated Latch Board Lock Gasket Grounding Indents Shielded	Nickel Plated Steel	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Solder	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 20.78

Description

General part information

HDB-26PMMP Series

26 Position D-Sub, High Density Plug, Male Pins Connector
