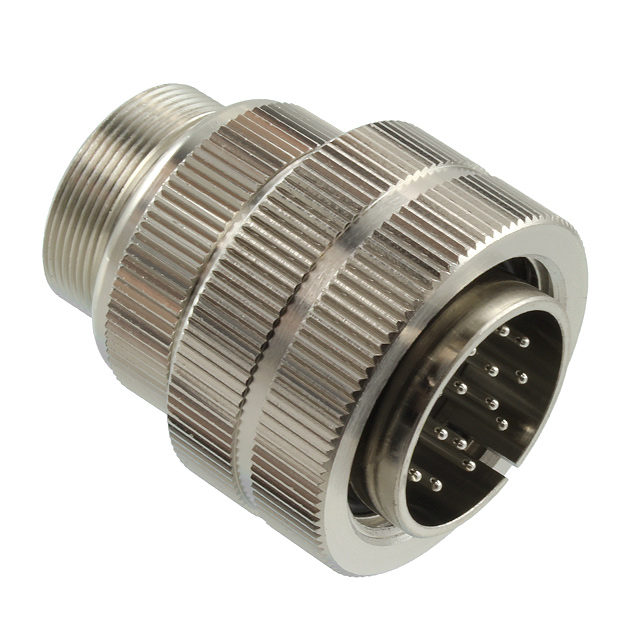

RM21WTP-15P(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 15P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM21WTP-15P(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 15P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM21WTP-15P(71)

Backshell Material, Plating	Nickel, Brass
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	21
Voltage Rating	700 VDC, 500 VAC

RM21WTP Series

Part	Thread Size	Includes	Features	Material	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Shell Size - Insert	Type	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insert Material	Orientation	Shell Material	Connector Type	Backshell Material, Plating	Material Flammability Rating	Shell Finish	Contact Finish - Mating	Contact Material	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Shielding
Hirose Electric USA, Inc. RM21WTP-CP(10)(71)	M20x0.75	1 Gasket 1 Washer 2 pc Clamp	Gasket Washer	Brass	10 mm	0.394 in	RM-W Series Plug	21	Cable Clamp Internal	180 °	0.906 in	23 mm	Silver	IP67 - Dust Tight Waterproof
Hirose Electric USA, Inc. RM21WTP-20P(71)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	20	350 VAC 490 VDC	0.203 Ám	8 Áin	5 A	Diallyl Phthalate (DAP)	Keyed	Brass	Male Pins Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal
Hirose Electric USA, Inc. RM21WTP-15P(71)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	15	500 VAC 700 VDC	2 µm	78.7 µin	5 A	Diallyl Phthalate (DAP)	Keyed	Brass	Male Pins Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal
Hirose Electric USA, Inc. RM21WTP-CP(8)(71)	M20x0.75	1 Gasket 1 Washer 2 pc Clamp	Gasket Washer	Brass			RM-W Series Plug	21	Cable Clamp Internal	180 °	0.906 in	23 mm	Silver	IP67 - Dust Tight Waterproof																			8 mm	0.315 in
Hirose Electric USA, Inc. RM21WTP-15S(31)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	15	500 VAC 700 VDC	0.127 µm	5 µin	5 A	Polyphenylene Sulfide (PPS)	Keyed	Brass	Female Sockets Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal			Unshielded
Hirose Electric USA, Inc. RM21WTP-20P(31)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	20	350 VAC 490 VDC	0.127 µm	5 µin	5 A	Diallyl Phthalate (DAP)	Keyed	Brass	Male Pins Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal			Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RM21WTP Series

15 Position Circular Connector Plug, Male Pins Solder Cup
