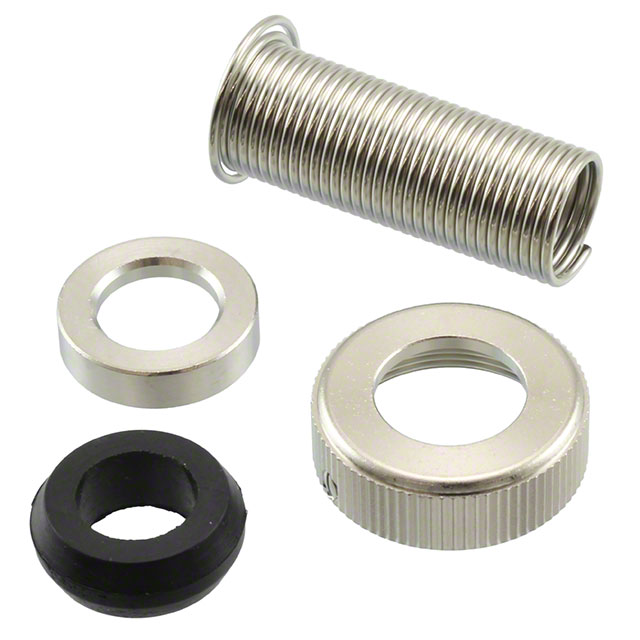

RM21WTP-CP(10)(71)

Active

Hirose Electric USA, Inc.

CONN CAB CLAMP INT SZ21 SIL M20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM21WTP-CP(10)(71)

Active

Hirose Electric USA, Inc.

CONN CAB CLAMP INT SZ21 SIL M20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM21WTP-CP(10)(71)

Cable Exit	180 °
Cable Opening [custom]	10 mm
Cable Opening [custom]	0.394 in
Color	Silver
Diameter - Outside [diameter]	0.906 in
Diameter - Outside [diameter]	23 mm
Features	Washer, Gasket
For Use With/Related Products	RM-W Series Plug
Includes	2 pc Clamp, 1 Gasket, 1 Washer
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Brass
Shell Size - Insert	21
Thread Size	M20x0.75
Type	Cable Clamp, Internal

RM21WTP Series

Part	Thread Size	Includes	Features	Material	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Shell Size - Insert	Type	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insert Material	Orientation	Shell Material	Connector Type	Backshell Material, Plating	Material Flammability Rating	Shell Finish	Contact Finish - Mating	Contact Material	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Shielding
Hirose Electric USA, Inc. RM21WTP-CP(10)(71)	M20x0.75	1 Gasket 1 Washer 2 pc Clamp	Gasket Washer	Brass	10 mm	0.394 in	RM-W Series Plug	21	Cable Clamp Internal	180 °	0.906 in	23 mm	Silver	IP67 - Dust Tight Waterproof
Hirose Electric USA, Inc. RM21WTP-20P(71)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	20	350 VAC 490 VDC	0.203 Ám	8 Áin	5 A	Diallyl Phthalate (DAP)	Keyed	Brass	Male Pins Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal
Hirose Electric USA, Inc. RM21WTP-15P(71)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	15	500 VAC 700 VDC	2 µm	78.7 µin	5 A	Diallyl Phthalate (DAP)	Keyed	Brass	Male Pins Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal
Hirose Electric USA, Inc. RM21WTP-CP(8)(71)	M20x0.75	1 Gasket 1 Washer 2 pc Clamp	Gasket Washer	Brass			RM-W Series Plug	21	Cable Clamp Internal	180 °	0.906 in	23 mm	Silver	IP67 - Dust Tight Waterproof																			8 mm	0.315 in
Hirose Electric USA, Inc. RM21WTP-15S(31)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	15	500 VAC 700 VDC	0.127 µm	5 µin	5 A	Polyphenylene Sulfide (PPS)	Keyed	Brass	Female Sockets Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal			Unshielded
Hirose Electric USA, Inc. RM21WTP-20P(31)			Backshell Coupling Nut					21					Silver	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	-25 °C	85 °C	20	350 VAC 490 VDC	0.127 µm	5 µin	5 A	Diallyl Phthalate (DAP)	Keyed	Brass	Male Pins Plug	Brass Nickel	UL94 V-0	Nickel	Silver	Copper Alloy	Metal			Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.08
		10	$ 9.97
		25	$ 9.39
		50	$ 9.15
		100	$ 8.91
		250	$ 7.95
		500	$ 7.47
		1000	$ 6.60
		2500	$ 6.26

Description

General part information

RM21WTP Series

Silver Connector Cable Clamp, Internal M20x0.75 21
