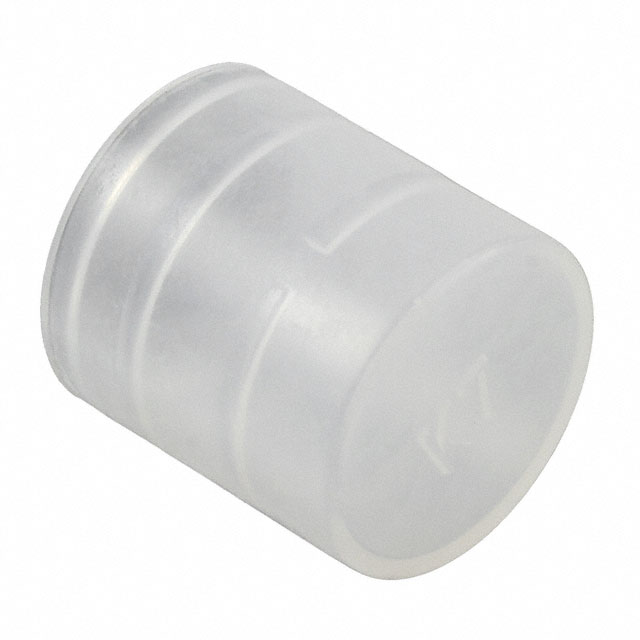

1607776

Obsolete

Phoenix Contact

CIRCULAR METRIC CONNECTORS ST-Z0006

Search across all available documentation for this part.

Obsolete

Phoenix Contact

CIRCULAR METRIC CONNECTORS ST-Z0006

Technical Specifications

Parameters and characteristics for this part

Specification	1607776

Accessory Type	Dust, Cap (Cover)
Color	White
Features	Water Resistant
For Use With/Related Products	M17 Signal and Power Plug-In Connector, External Thread
Material	Plastic
Shell Size - Insert	M17

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Part	Material Flammability Rating	Color	Number of Levels	Termination Style	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Terminal - Width [y]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material - Insulation	Stripping Length	Weight	Weight	Tool Type	For Use With/Related Products	Features	Shell Size - Insert	Accessory Type	Material	Number of Positions	Stripping Length [x]	Fastening Type	Note	Contact Type	Contact Size	Contact Shape	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Housing Color	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation	Shielding	Ingress Protection	Shell Material
Phoenix Contact 3031416	UL94 V-0	Green Yellow	1	Push In Spring	10 AWG	28 AWG	Ground Earth	6.2 mm	0.08 mm²	6 mm²	Nylon Polyamide (PA)	10 mm
Phoenix Contact 1613667													0.16 lb	72.57 g	Assembly Tool
Phoenix Contact 1607776		White														M17 Signal and Power Plug-In Connector External Thread	Water Resistant	M17	Cap (Cover) Dust	Plastic
Phoenix Contact 3038147	UL94 V-0	Green Yellow	1	Push In Spring	8 AWG	24 AWG	Ground Earth	8.2 mm	0.2 mm²	10 mm²	Nylon Polyamide (PA)										2	12 mm
Phoenix Contact 1613583							For Female Sockets										Backshell	M17-7					Push-Twist	Contacts Not Included	Crimp	1 mm	Circular	1	6	Receptacle Housing	Silver	Polyamide (PA66) Nylon 6/6	125 °C	-40 °C	Free Hanging (In-Line)	N	Shielded	IP67 - Dust Tight Waterproof	Gadolinium-Zinc
