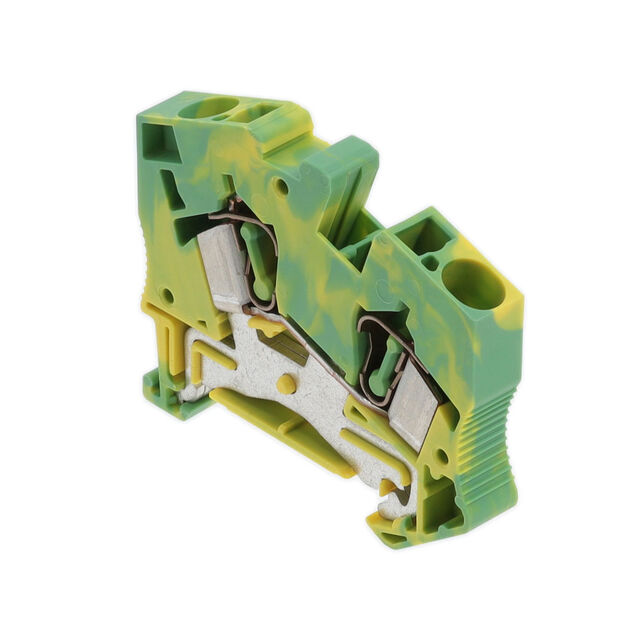

3038147

LTB

Phoenix Contact

DIN RAIL TERMINAL BLOCKS STS 6-PE ANGLED GRND TERM BK

Search across all available documentation for this part.

LTB

Phoenix Contact

DIN RAIL TERMINAL BLOCKS STS 6-PE ANGLED GRND TERM BK

Technical Specifications

Parameters and characteristics for this part

Specification	3038147

Color	Green, Yellow
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length [x]	12 mm
Terminal - Width [y]	8.2 mm
Termination Style	Push In, Spring
Type	Ground, Earth
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Part	Material Flammability Rating	Color	Number of Levels	Termination Style	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Terminal - Width [y]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material - Insulation	Stripping Length	Weight	Weight	Tool Type	For Use With/Related Products	Features	Shell Size - Insert	Accessory Type	Material	Number of Positions	Stripping Length [x]	Fastening Type	Note	Contact Type	Contact Size	Contact Shape	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Housing Color	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation	Shielding	Ingress Protection	Shell Material
Phoenix Contact 3031416	UL94 V-0	Green Yellow	1	Push In Spring	10 AWG	28 AWG	Ground Earth	6.2 mm	0.08 mm²	6 mm²	Nylon Polyamide (PA)	10 mm
Phoenix Contact 1613667													0.16 lb	72.57 g	Assembly Tool
Phoenix Contact 1607776		White														M17 Signal and Power Plug-In Connector External Thread	Water Resistant	M17	Cap (Cover) Dust	Plastic
Phoenix Contact 3038147	UL94 V-0	Green Yellow	1	Push In Spring	8 AWG	24 AWG	Ground Earth	8.2 mm	0.2 mm²	10 mm²	Nylon Polyamide (PA)										2	12 mm
Phoenix Contact 1613583							For Female Sockets										Backshell	M17-7					Push-Twist	Contacts Not Included	Crimp	1 mm	Circular	1	6	Receptacle Housing	Silver	Polyamide (PA66) Nylon 6/6	125 °C	-40 °C	Free Hanging (In-Line)	N	Shielded	IP67 - Dust Tight Waterproof	Gadolinium-Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.97

General part information
