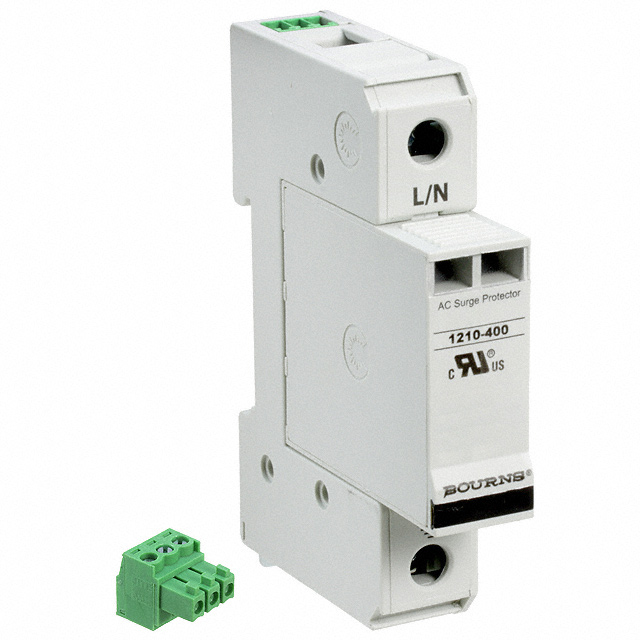

1210-1S-400

Active

Bourns Inc.

SURGE PROTECTOR, DIN RAIL, MAINS SURGE PROTECTOR, 1 POLE, TYPE 2 & 4, 100 KA, 420 VAC, DIN RAIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPD New Product Release Datasheet +3

1210-1S-400

Active

Bourns Inc.

SURGE PROTECTOR, DIN RAIL, MAINS SURGE PROTECTOR, 1 POLE, TYPE 2 & 4, 100 KA, 420 VAC, DIN RAIL

Deep-Dive with AI

DocumentsSPD New Product Release Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1210-1S-400

Approval Agency	UL, CSA, CE
Current - Discharge (Max) (8/20µS) [Max]	100 kA
Current - Discharge (Nom) (8/20µS)	20 kA
Current - Short Circuit Rating (SCCR)	100 kA
Features	Thermally Protected, Remote Signaling Contacts
Form	Module Only
Mounting Type	DIN Rail
Number of Poles	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Type	Type 4, Type 2
Voltage - Continuous Operating (Max) (MCOV)	420 VAC
Voltage - Protection Level (VP) (2416)	1.8 kV
Voltage - Protection Rating (VPR)	1.2 kV

1210 Series

Part	Number of Poles	Current - Discharge (Nom) (8/20µS)	Form	Voltage - Continuous Operating (Max) (MCOV)	Mounting Type	Voltage - Protection Rating (VPR)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Max) (8/20µS) [Max]	Features	Approval Agency	Voltage - Protection Level (VP) (2416)	Current - Short Circuit Rating (SCCR)	Voltage - Continuous Operating (Max) (MCOV) [Max]
Bourns Inc. 1210-1S-400	1	20 kA	Module Only	420 VAC	DIN Rail	1.2 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.8 kV	100 kA
Bourns Inc. 1210-3S-400	3	20 kA	Module Only	420 VAC	DIN Rail	1.2 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.8 kV	100 kA
Bourns Inc. 1210-3S-230	3	20 kA	Module Only		DIN Rail	900 V	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.25 kV	100 kA	275 VAC
Bourns Inc. 1210-4S-120	4 poles	20 kA	Module Only		DIN Rail	600 V	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	900 V	100 kA	150 VAC
Bourns Inc. 1210-3S-600	3	20 kA	Module Only		DIN Rail	3 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	4 kV	100 kA	840 VAC
Bourns Inc. 1210-4S-230	4 poles	20 kA	Module Only		DIN Rail	900 V	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.25 kV	100 kA	275 VAC
Bourns Inc. 1210-1S-600	1	20 kA	Module Only		DIN Rail	3 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	4 kV	100 kA	840 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 72.22
Newark	Each	1	$ 75.76

Description

General part information

1210 Series

Heavy duty Type-2 pluggable AC surge protective device (SPD) designed to protect high risk electrical service entrance and branch panels. This SPD is intended to be installed at the front end of the installation, in the main switchboard, close to sensitive terminals or in installations without LPS (lightning rods).
