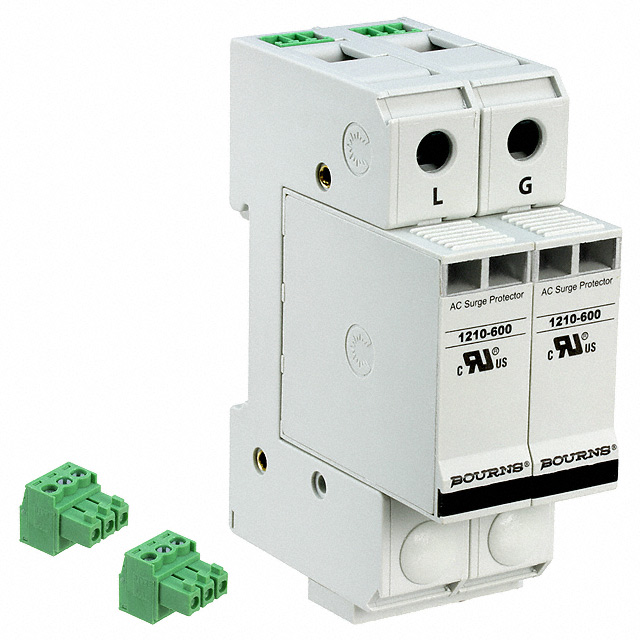

1210-1S-600

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 840VAC MCOV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SPD New Product Release

1210-1S-600

Active

Bourns Inc.

SPD TYPE 2/TYPE 4 840VAC MCOV

Deep-Dive with AI

DocumentsDatasheet SPD New Product Release

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1210-1S-600

Approval Agency	UL, CSA, CE
Current - Discharge (Max) (8/20µS) [Max]	100 kA
Current - Discharge (Nom) (8/20µS)	20 kA
Current - Short Circuit Rating (SCCR)	100 kA
Features	Thermally Protected, Remote Signaling Contacts
Form	Module Only
Mounting Type	DIN Rail
Number of Poles	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Type	Type 4, Type 2
Voltage - Continuous Operating (Max) (MCOV) [Max]	840 VAC
Voltage - Protection Level (VP) (2416)	4 kV
Voltage - Protection Rating (VPR)	3 kV

1210 Series

Part	Number of Poles	Current - Discharge (Nom) (8/20µS)	Form	Voltage - Continuous Operating (Max) (MCOV)	Mounting Type	Voltage - Protection Rating (VPR)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Max) (8/20µS) [Max]	Features	Approval Agency	Voltage - Protection Level (VP) (2416)	Current - Short Circuit Rating (SCCR)	Voltage - Continuous Operating (Max) (MCOV) [Max]
Bourns Inc. 1210-1S-400	1	20 kA	Module Only	420 VAC	DIN Rail	1.2 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.8 kV	100 kA
Bourns Inc. 1210-3S-400	3	20 kA	Module Only	420 VAC	DIN Rail	1.2 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.8 kV	100 kA
Bourns Inc. 1210-3S-230	3	20 kA	Module Only		DIN Rail	900 V	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.25 kV	100 kA	275 VAC
Bourns Inc. 1210-4S-120	4 poles	20 kA	Module Only		DIN Rail	600 V	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	900 V	100 kA	150 VAC
Bourns Inc. 1210-3S-600	3	20 kA	Module Only		DIN Rail	3 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	4 kV	100 kA	840 VAC
Bourns Inc. 1210-4S-230	4 poles	20 kA	Module Only		DIN Rail	900 V	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	1.25 kV	100 kA	275 VAC
Bourns Inc. 1210-1S-600	1	20 kA	Module Only		DIN Rail	3 kV	Type 2 Type 4	85 °C	-50 °C	100 kA	Remote Signaling Contacts Thermally Protected	CE CSA UL	4 kV	100 kA	840 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 149.92

Description

General part information

1210 Series

SPD TYPE 2/TYPE 4 840VAC MCOV

Documents

Technical documentation and resources

Datasheet

SPD New Product Release

Datasheet
