Technical Specifications
Parameters and characteristics for this part
| Specification | ESP8266EX |
|---|---|
| Current - Receiving [Max] | 56 mA |
| Current - Receiving [Min] | 50 mA |
| Current - Transmitting [Max] | 170 mA |
| Current - Transmitting [Min] | 120 mA |
| Data Rate (Max) [Max] | 54 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 8 |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Power - Output | 20 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -91 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Supplier Device Package | 32-QFN (5x5) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.60 | |
| Digi-Reel® | 1 | $ 1.60 | ||
| Tape & Reel (TR) | 5000 | $ 1.60 | ||
Description
General part information
ESP8266 Series

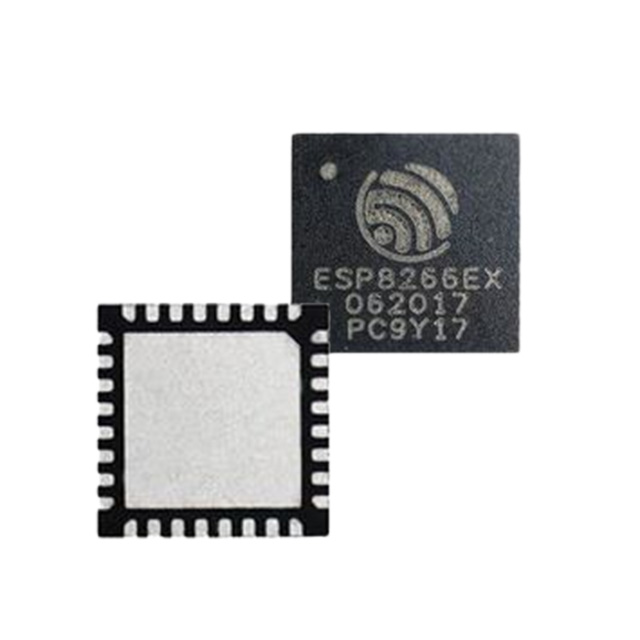

IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 32-VFQFN Exposed Pad
