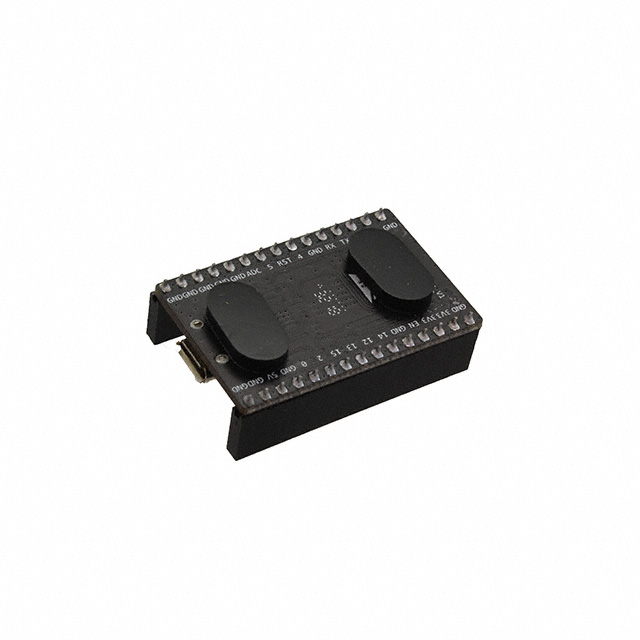

ESP8266-DEVKITC-02U-F

Active

Espressif Systems

ESP-WROOM-02U EVAL BOARD

Search across all available documentation for this part.

Active

Espressif Systems

ESP-WROOM-02U EVAL BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	ESP8266-DEVKITC-02U-F

For Use With/Related Products	ESP8266, ESP-WROOM-02U
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)

Part	Type	Supplied Contents	Frequency	For Use With/Related Products	RF Family/Standard	Current - Receiving [Min]	Current - Receiving [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Transmitting [Max]	Current - Transmitting [Min]	Data Rate (Max) [Max]	Package / Case	Protocol	Power - Output	Supplier Device Package	GPIO	Sensitivity	Serial Interfaces	Mounting Type
Espressif Systems ESP8266-DEVKITC-02U-F	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	Board(s)	2.4 GHz	ESP-WROOM-02U ESP8266
Espressif Systems ESP8266-DEVKITC-02D-F	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	Board(s)	2.4 GHz	ESP-WROOM-02D ESP8266
Espressif Systems ESP8266EX	TxRx + MCU		2.4 GHz		WiFi	50 mA	56 mA	3.6 V	2.5 V	170 mA	120 mA	54 Mbps	32-VFQFN Exposed Pad	802.11b/g/n	20 dBm	32-QFN (5x5)	8	-91 dBm	I2C I2S SPI UART	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.00

General part information

ESP8266, ESP-WROOM-02U - Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
