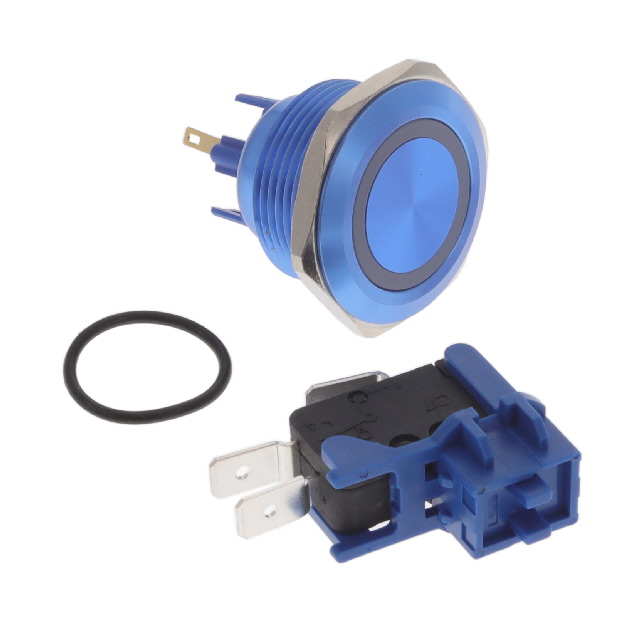

DHU301LBUBNB
ActiveCIT Relay and Switch
SWITCH PB SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DHU301LBUBNB
ActiveCIT Relay and Switch
SWITCH PB SPDT 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DHU301LBUBNB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Blue |
| Current Rating (Amps) | 16 A |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | LED, Blue |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 30 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.110"/0.250" |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 29.72 | |
| 10 | $ 27.05 | |||
| 30 | $ 25.79 | |||
| 40 | $ 24.06 | |||
| 80 | $ 23.12 | |||
| 230 | $ 21.54 | |||
| 440 | $ 19.46 | |||
Description
General part information
DHU301 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
