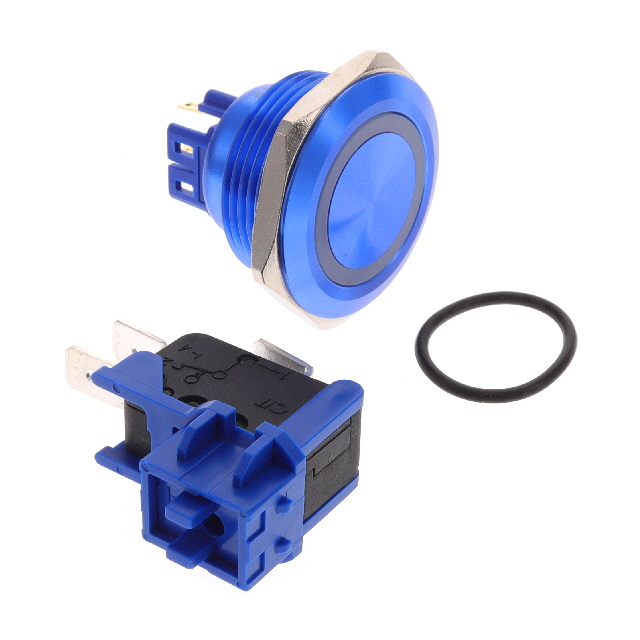

DHU301NBUBNB

Active

CIT Relay and Switch

SWITCH PB SPDT 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DHU301NBUBNB

Active

CIT Relay and Switch

SWITCH PB SPDT 16A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DHU301NBUBNB

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Blue
Current Rating (Amps)	16 A
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Blue
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110"/0.250"
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

DHU301 Series

Part	Circuit	Current Rating (Amps)	Electrical Life	Color - Actuator/Cap	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Ingress Protection	Termination Style	Switch Function	Illumination Type, Color	Features
CIT Relay and Switch DHU301NARXZB	SPDT	16 A	100000 Cycles	Red	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-Mom
CIT Relay and Switch DHU301NGUBNB	SPDT	16 A	100000 Cycles	Blue	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-Mom	Blue LED
CIT Relay and Switch DHU301NGSRNB	SPDT	16 A	100000 Cycles	Silver	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-Mom	LED Red
CIT Relay and Switch DHU301LBRRGNB	SPDT	16 A	100000 Cycles	Red	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-On	Green/Red LED
CIT Relay and Switch DHU301LBBGNB	SPDT	16 A	100000 Cycles	Black	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-On	Green LED
CIT Relay and Switch DHU301LBRRNB	SPDT	16 A	100000 Cycles	Red	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-On	LED Red
CIT Relay and Switch DHU301LBSRGNB	SPDT	16 A	100000 Cycles	Silver	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-On	Green/Red LED
CIT Relay and Switch DHU301NBUBNB	SPDT	16 A	100000 Cycles	Blue	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-Mom	Blue LED
CIT Relay and Switch DHU301LBUBNB	SPDT	16 A	100000 Cycles	Blue	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal Illuminated	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-On	Blue LED
CIT Relay and Switch DHU301LASXZB	SPDT	16 A	100000 Cycles	Silver	Panel Mount Front	125 V	30 mm	Button Flush Round	Anti-Vandal	85 °C	-40 °C	No Marking	IP67 - Dust Tight Waterproof	Quick Connect - 0.110"/0.250"	On-On		Stainless Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.14
		10	$ 18.29
		30	$ 18.09

Description

General part information

DHU301 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
