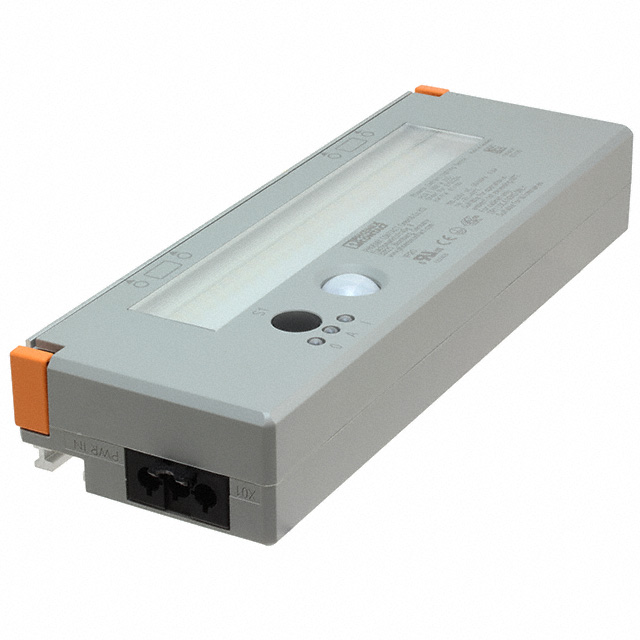

2702224

Obsolete

Phoenix Contact

LED ENG NEUT WHT RECT 4000K

Search across all available documentation for this part.

Obsolete

Phoenix Contact

LED ENG NEUT WHT RECT 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	2702224

CCT (K)	4000 K
Color	Neutral, White
Configuration	Rectangle
CRI (Color Rendering Index)	85
Height [z]	44 mm
Luminous Flux @ Current/Temperature	685 lm
Size / Dimension [x]	265 mm
Size / Dimension [y]	91 mm
Type	LED Engine

Part	Color	Configuration	Height [z]	Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]
Phoenix Contact 2702223	Cool White	Rectangle	38 mm	LED Engine	24 V	560 lm	5000 K	75
Phoenix Contact 2702227	Neutral White	Rectangle	44 mm	LED Module		685 lm	4000 K	85	91 mm	315.4 mm
Phoenix Contact 2702226	Neutral White	Rectangle	44 mm	LED Module		685 lm	4000 K	85	91 mm	315.4 mm
Phoenix Contact 2702224	Neutral White	Rectangle	44 mm	LED Engine		685 lm	4000 K	85	91 mm	265 mm
Phoenix Contact 2702228	Neutral White	Rectangle	44 mm	LED Module		685 lm	4000 K	85	91 mm	315.4 mm
Phoenix Contact 2702222	Cool White	Linear Light Strip Plug and Play	38 mm	LED Engine	24 V	340 lm	5000 K	75	23 mm	375 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Engine - White, Neutral Rectangle
