2702227

Obsolete

Phoenix Contact

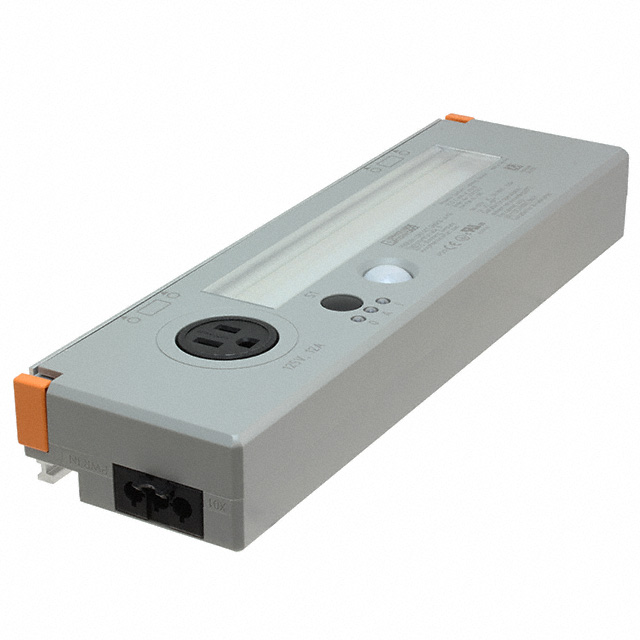

LED LIGHTING FIXTURES PLD E 608 W 315/B

Search across all available documentation for this part.

Obsolete

Phoenix Contact

LED LIGHTING FIXTURES PLD E 608 W 315/B

Technical Specifications

Parameters and characteristics for this part

Specification	2702227

CCT (K)	4000 K
Color	Neutral, White
Configuration	Rectangle
CRI (Color Rendering Index)	85
Height [z]	44 mm
Luminous Flux @ Current/Temperature	685 lm
Size / Dimension [x]	315.4 mm
Size / Dimension [y]	91 mm
Type	LED Module

Part	Color	Configuration	Height [z]	Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]
Phoenix Contact 2702223	Cool White	Rectangle	38 mm	LED Engine	24 V	560 lm	5000 K	75
Phoenix Contact 2702227	Neutral White	Rectangle	44 mm	LED Module		685 lm	4000 K	85	91 mm	315.4 mm
Phoenix Contact 2702226	Neutral White	Rectangle	44 mm	LED Module		685 lm	4000 K	85	91 mm	315.4 mm
Phoenix Contact 2702224	Neutral White	Rectangle	44 mm	LED Engine		685 lm	4000 K	85	91 mm	265 mm
Phoenix Contact 2702228	Neutral White	Rectangle	44 mm	LED Module		685 lm	4000 K	85	91 mm	315.4 mm
Phoenix Contact 2702222	Cool White	Linear Light Strip Plug and Play	38 mm	LED Engine	24 V	340 lm	5000 K	75	23 mm	375 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Neutral Rectangle
