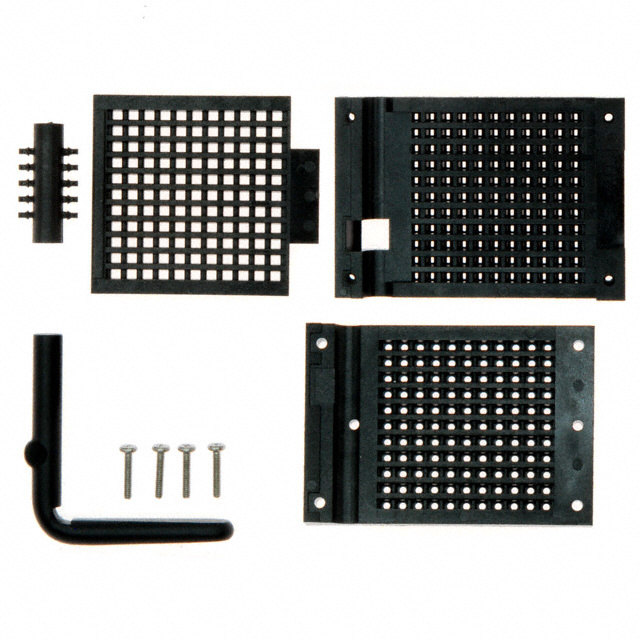

200-6311-9UN-1900
Obsolete3M (TC)
121P PGA GOLD BERYLLIUM COPPER ALLOY -55℃~+150℃ 2.54MM PLUGIN IC / TRANSISTOR SOCKET ROHS
Deep-Dive with AI
Search across all available documentation for this part.
200-6311-9UN-1900
Obsolete3M (TC)
121P PGA GOLD BERYLLIUM COPPER ALLOY -55℃~+150℃ 2.54MM PLUGIN IC / TRANSISTOR SOCKET ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 200-6311-9UN-1900 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Housing Material | Polyethersulfone (PES) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 121 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.3 mm |
| Termination Post Length | 0.13 in |
| Type | ZIF (ZIP), PGA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | N/A | 1 | $ 0.00 | |
Description
General part information
200 Series
121 (11 x 11) Pos PGA, ZIF (ZIP) Socket Gold Through Hole
