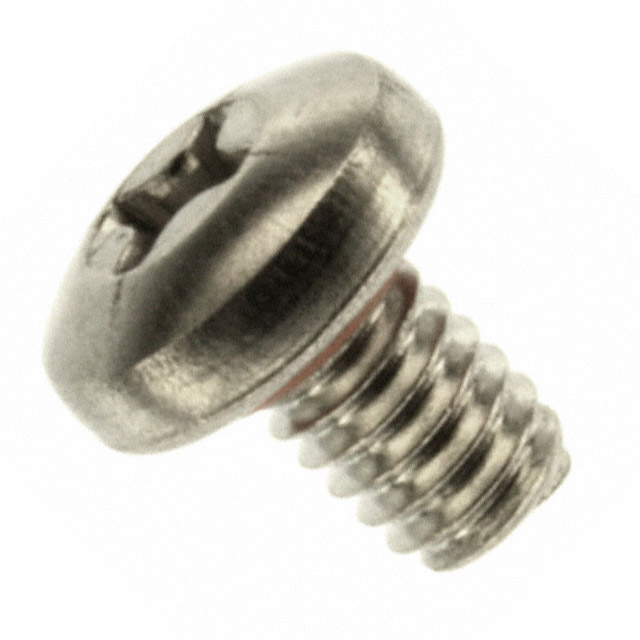

R8-32X1/4 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 8-32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R8-32X1/4 2701

Drive Type	Phillips
Features	Self Sealing
Head Diameter [diameter]	0.347 in
Head Diameter [diameter]	8.81 mm
Head Height	0.115 in
Head Height	2.92 mm
Length - Below Head	6.35 mm
Length - Below Head	0.25 in
Length - Below Head	0.25 in
Length - Overall [x]	0.365 in
Length - Overall [x]	9.27 mm
Material	Stainless Steel
Screw Head Type	Pan Head
Thread Size	#8-32
Type	Machine Screw

R8-32 Series

Part	Features	Screw Head Type	Drive Type	Type	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head [x]	Head Height	Head Height	Length - Overall [x]	Length - Overall [x]	Material	Length - Below Head	Length - Overall	Length - Overall	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head
APM HEXSEAL R8-32X7/8 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	0.875 in	22.23 mm	0.875 in	0.115 in	2.92 mm	0.99 in	25.15 mm	Stainless Steel
APM HEXSEAL R8-32X3/4 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	19.05 mm	0.75 "		0.115 in	2.92 mm			Stainless Steel	0.75 "	0.865 in	21.97 mm
APM HEXSEAL R8-32X5/16 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32			0.313 in	0.115 in	2.92 mm	0.428 in	10.87 mm	Stainless Steel				5 in	7.95 mm
APM HEXSEAL R8-32X1 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	25.4 mm			0.115 in	2.92 mm	1.115 "	28.32 mm	Stainless Steel	1 in
APM HEXSEAL R8-32X5/8 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	15.88 mm	0.625 in		0.115 in	2.92 mm	0.74 in	18.8 mm	Stainless Steel	0.625 in
APM HEXSEAL R8-32X1/4 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	6.35 mm	0.25 in		0.115 in	2.92 mm	0.365 in	9.27 mm	Stainless Steel	0.25 in
APM HEXSEAL R8-32X7/16 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	11.13 mm			0.115 in	2.92 mm	0.553 in	14.05 mm	Stainless Steel	0.438 "					7/16
APM HEXSEAL R8-32X3/8 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	0.375 "	9.53 mm		0.115 in	2.92 mm	0.49 in	12.45 mm	Stainless Steel	0.375 "
APM HEXSEAL R8-32X9/16 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	14.3 mm	0.5625 in		0.115 in	2.92 mm	0.678 in	17.22 mm	Stainless Steel	0.563 in
