R8-32X5/8 2701

Active

APM HEXSEAL

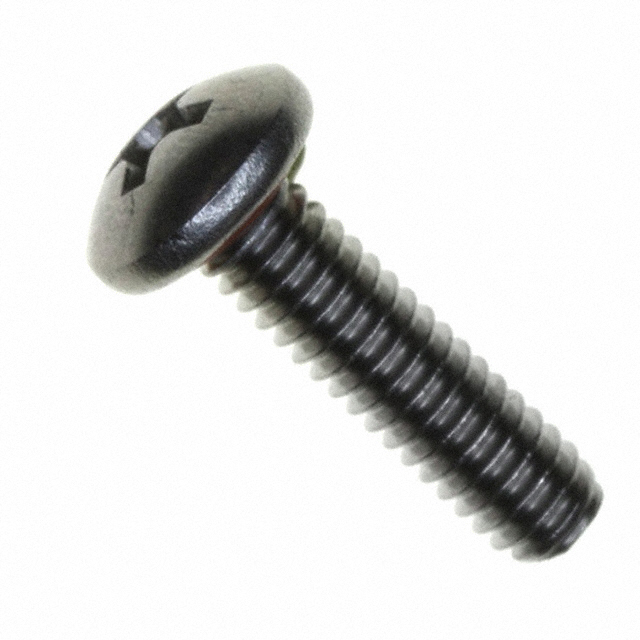

MACHINE SCREW PAN PHILLIPS 8-32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R8-32X5/8 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 8-32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R8-32X5/8 2701

Drive Type	Phillips
Features	Self Sealing
Head Diameter [diameter]	0.347 in
Head Diameter [diameter]	8.81 mm
Head Height	0.115 in
Head Height	2.92 mm
Length - Below Head	0.625 in
Length - Below Head	15.88 mm
Length - Below Head	0.625 in
Length - Overall [x]	18.8 mm
Length - Overall [x]	0.74 in
Material	Stainless Steel
Screw Head Type	Pan Head
Thread Size	#8-32
Type	Machine Screw

R8-32 Series

Part	Features	Screw Head Type	Drive Type	Type	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head [x]	Head Height	Head Height	Length - Overall [x]	Length - Overall [x]	Material	Length - Below Head	Length - Overall	Length - Overall	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head
APM HEXSEAL R8-32X7/8 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	0.875 in	22.23 mm	0.875 in	0.115 in	2.92 mm	0.99 in	25.15 mm	Stainless Steel
APM HEXSEAL R8-32X3/4 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	19.05 mm	0.75 "		0.115 in	2.92 mm			Stainless Steel	0.75 "	0.865 in	21.97 mm
APM HEXSEAL R8-32X5/16 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32			0.313 in	0.115 in	2.92 mm	0.428 in	10.87 mm	Stainless Steel				5 in	7.95 mm
APM HEXSEAL R8-32X1 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	25.4 mm			0.115 in	2.92 mm	1.115 "	28.32 mm	Stainless Steel	1 in
APM HEXSEAL R8-32X5/8 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	15.88 mm	0.625 in		0.115 in	2.92 mm	0.74 in	18.8 mm	Stainless Steel	0.625 in
APM HEXSEAL R8-32X1/4 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	6.35 mm	0.25 in		0.115 in	2.92 mm	0.365 in	9.27 mm	Stainless Steel	0.25 in
APM HEXSEAL R8-32X7/16 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	11.13 mm			0.115 in	2.92 mm	0.553 in	14.05 mm	Stainless Steel	0.438 "					7/16
APM HEXSEAL R8-32X3/8 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	0.375 "	9.53 mm		0.115 in	2.92 mm	0.49 in	12.45 mm	Stainless Steel	0.375 "
APM HEXSEAL R8-32X9/16 2701	Self Sealing	Pan Head	Phillips	Machine Screw	0.347 in	8.81 mm	#8-32	14.3 mm	0.5625 in		0.115 in	2.92 mm	0.678 in	17.22 mm	Stainless Steel	0.563 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76
		10	$ 0.57
		100	$ 0.44
		1000	$ 0.38
		5000	$ 0.33

Description

General part information

R8-32 Series

#8-32 Pan Head Machine Screw Phillips Drive Stainless Steel

Documents

Technical documentation and resources
