0010112113
ActiveMolex

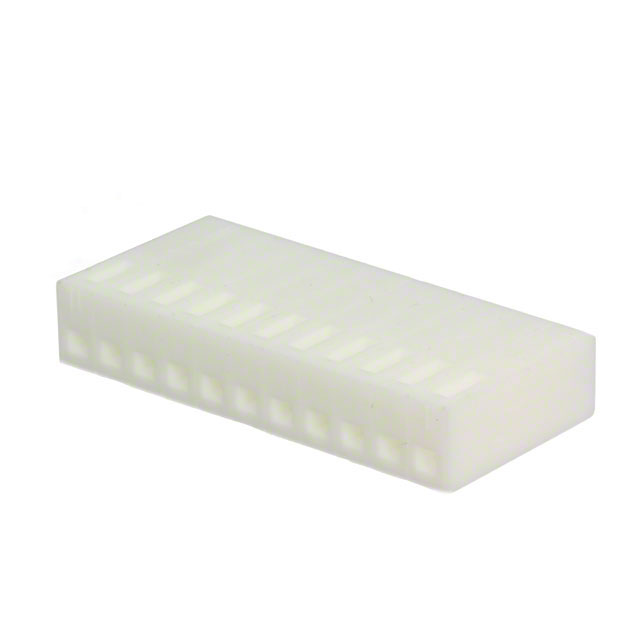

CONN RCPT HSG 11POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0010112113
ActiveMolex
CONN RCPT HSG 11POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0010112113 |
|---|---|
| Color | White |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
001011 Series
| Part | Color | Number of Positions | Insulation Material | Note | Pitch [x] | Pitch [x] | Connector Type | Fastening Type | Contact Termination | Mounting Type | Number of Rows | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | White | 18 | Nylon Polyamide (PA) | Contacts Not Included | 2.54 mm | 0.1 in | Receptacle | Locking Ramp | Crimp | Free Hanging (In-Line) | 1 | Non-Gendered |
Molex | White | 12 | Nylon Polyamide (PA) | Contacts Not Included | 2.54 mm | 0.1 in | Receptacle | Locking Ramp | Crimp | Free Hanging (In-Line) | 1 | Non-Gendered |
Molex | White | 11 | Nylon Polyamide (PA) | Contacts Not Included | 2.54 mm | 0.1 in | Receptacle | Locking Ramp | Crimp | Free Hanging (In-Line) | 1 | Non-Gendered |
Molex | White | Nylon Polyamide (PA) | Contacts Not Included | 2.54 mm | 0.1 in | Receptacle | Locking Ramp | Crimp | Free Hanging (In-Line) | 1 | Non-Gendered | |
Molex | White | 10 | Nylon Polyamide (PA) | Contacts Not Included | 2.54 mm | 0.1 in | Receptacle | Locking Ramp | Crimp | Free Hanging (In-Line) | 1 | Non-Gendered |
Molex | White | 1 | Contacts Not Included | Receptacle | Locking Ramp | Crimp | Free Hanging (In-Line) | 1 | Non-Gendered | |||
Molex | White | 2 | Nylon Polyamide (PA) | Contacts Not Included | 2.54 mm | 0.1 in | Receptacle | Locking Ramp | Crimp | Free Hanging (In-Line) | 1 | Non-Gendered |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.42 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.27 | |||
| 1000 | $ 0.23 | |||
Description
General part information
001011 Series
11 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
