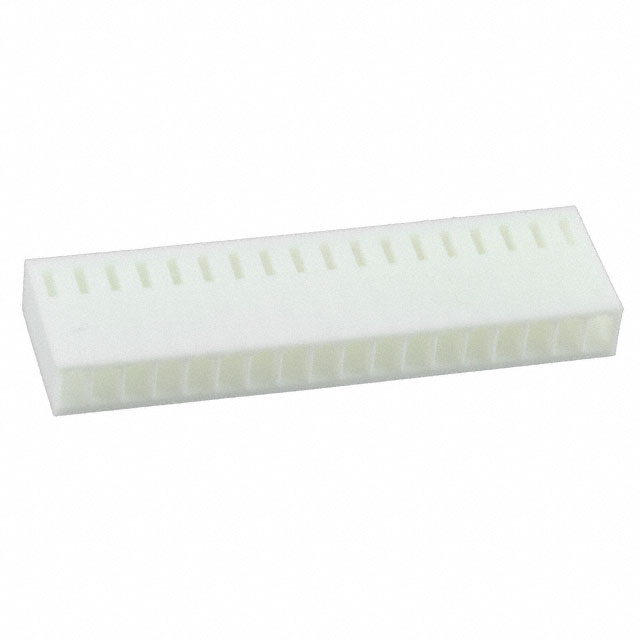

0010112183

Active

Molex

CONN RCPT HSG 18POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 18POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Color	Number of Positions	Insulation Material	Note	Pitch [x]	Pitch [x]	Connector Type	Fastening Type	Contact Termination	Mounting Type	Number of Rows	Contact Type
Molex 0010112183	White	18	Nylon Polyamide (PA)	Contacts Not Included	2.54 mm	0.1 in	Receptacle	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Non-Gendered
Molex 0010112123	White	12	Nylon Polyamide (PA)	Contacts Not Included	2.54 mm	0.1 in	Receptacle	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Non-Gendered
Molex 0010112113	White	11	Nylon Polyamide (PA)	Contacts Not Included	2.54 mm	0.1 in	Receptacle	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Non-Gendered
Molex 0010112173	White		Nylon Polyamide (PA)	Contacts Not Included	2.54 mm	0.1 in	Receptacle	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Non-Gendered
Molex 0010112103	White	10	Nylon Polyamide (PA)	Contacts Not Included	2.54 mm	0.1 in	Receptacle	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Non-Gendered
Molex 0010112013	White	1		Contacts Not Included			Receptacle	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Non-Gendered
Molex 0010112024	White	2	Nylon Polyamide (PA)	Contacts Not Included	2.54 mm	0.1 in	Receptacle	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Non-Gendered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)

Technical documentation and resources

No documents available
