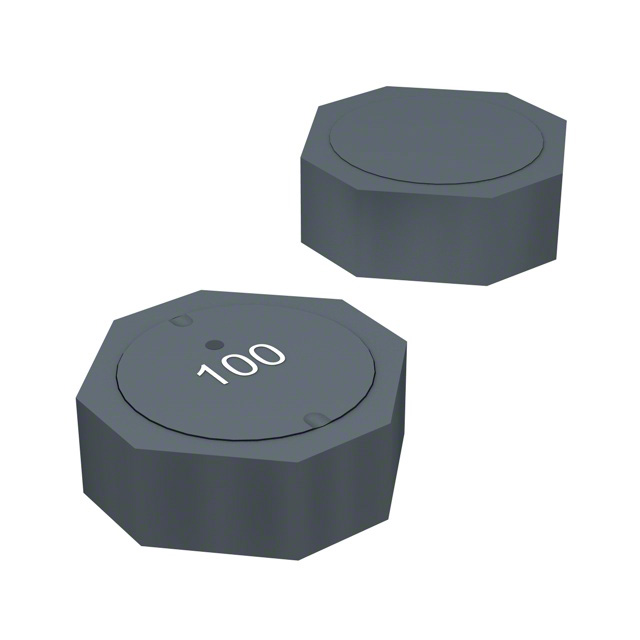

SRU5018-100Y - SRU5018 Series

SRU5018-100Y

Active
Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 10UH 30% 100KHZ 12Q-FACTOR FERRITE 1.25A 0.065OHM DCR T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetEnhanced Product Overview EN+2
SRU5018-100Y - SRU5018 Series

SRU5018-100Y

Active
Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 10UH 30% 100KHZ 12Q-FACTOR FERRITE 1.25A 0.065OHM DCR T/R

Deep-Dive with AI

DocumentsDatasheetEnhanced Product Overview EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSRU5018-100Y
Current - Saturation (Isat)1.05 A
Current Rating (Amps)1.25 A
DC Resistance (DCR)65 mOhm
Frequency - Self Resonant50 MHz
Height - Seated (Max) [Max] [z]2 mm
Height - Seated (Max) [Max] [z]0.079 in
Inductance10 µH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
Q @ Freq2.52 MHz, 12
ShieldingShielded
Size / Dimension [x]0.205 in
Size / Dimension [x]5.2 mm
Size / Dimension [y]0.205 "
Size / Dimension [y]5.2 mm
Tolerance30 %
TypeWirewound, Drum Core

SRU5018 Series

PartSize / Dimension [y]Size / Dimension [y]Size / Dimension [x]Size / Dimension [x]Height - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Package / CaseToleranceShieldingMaterial - CoreTypeInductance Frequency - TestMounting TypeInductanceOperating Temperature [Max]Operating Temperature [Min]Q @ FreqCurrent Rating (Amps)Current - Saturation (Isat)DC Resistance (DCR)Frequency - Self Resonant
Bourns Inc.
SRU5018-3R3Y
0.205 "
5.2 mm
0.205 in
5.2 mm
2 mm
0.079 in
Nonstandard
30 %
Shielded
Ferrite
Drum Core
Wirewound
100 kHz
Surface Mount
3.3 µH
125 °C
-40 °C
Bourns Inc.
SRU5018-3R5Y
0.205 "
5.2 mm
0.205 in
5.2 mm
2 mm
0.079 in
Nonstandard
30 %
Shielded
Ferrite
Drum Core
Wirewound
100 kHz
Surface Mount
3.5 µH
125 °C
-40 °C
7.96 MHz
9
2.1 A
1.7 A
32 mOhm
90 MHz
Bourns Inc.
SRU5018-150Y
0.205 "
5.2 mm
0.205 in
5.2 mm
2 mm
0.079 in
Nonstandard
30 %
Shielded
Ferrite
Drum Core
Wirewound
100 kHz
Surface Mount
15 µH
125 °C
-40 °C
2.52 MHz
12
950 mA
800 mA
100 mOhm
40 MHz
Bourns Inc.
SRU5018-1R0Y
0.205 "
5.2 mm
0.205 in
5.2 mm
2 mm
0.079 in
Nonstandard
30 %
Shielded
Ferrite
Drum Core
Wirewound
100 kHz
Surface Mount
1 µH
125 °C
-40 °C
7.96 MHz
9
2.8 A
2.85 A
12.5 mOhm
200 MHz
Bourns Inc.
SRU5018-470Y
0.205 "
5.2 mm
0.205 in
5.2 mm
2 mm
0.079 in
Nonstandard
30 %
Shielded
Ferrite
Drum Core
Wirewound
100 kHz
Surface Mount
47 µH
125 °C
-40 °C
2.52 MHz
13
0.54 A
450 mA
330 mOhm
18 MHz
Bourns Inc.
SRU5018-100Y
0.205 "
5.2 mm
0.205 in
5.2 mm
2 mm
0.079 in
Nonstandard
30 %
Shielded
Ferrite
Drum Core
Wirewound
100 kHz
Surface Mount
10 µH
125 °C
-40 °C
2.52 MHz
12
1.25 A
1.05 A
65 mOhm
50 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.56
10$ 0.48
25$ 0.44
50$ 0.40
100$ 0.36
250$ 0.34
500$ 0.29
Digi-Reel® 1$ 0.56
10$ 0.48
25$ 0.44
50$ 0.40
100$ 0.36
250$ 0.34
500$ 0.29
Tape & Reel (TR) 1000$ 0.28
NewarkEach (Supplied on Cut Tape) 1$ 0.62
10$ 0.55
25$ 0.54
50$ 0.52
100$ 0.51
250$ 0.49
500$ 0.47
1000$ 0.39

Description

General part information

SRU5018 Series

10 µH Shielded Drum Core, Wirewound Inductor 1.25 A 65mOhm Nonstandard
