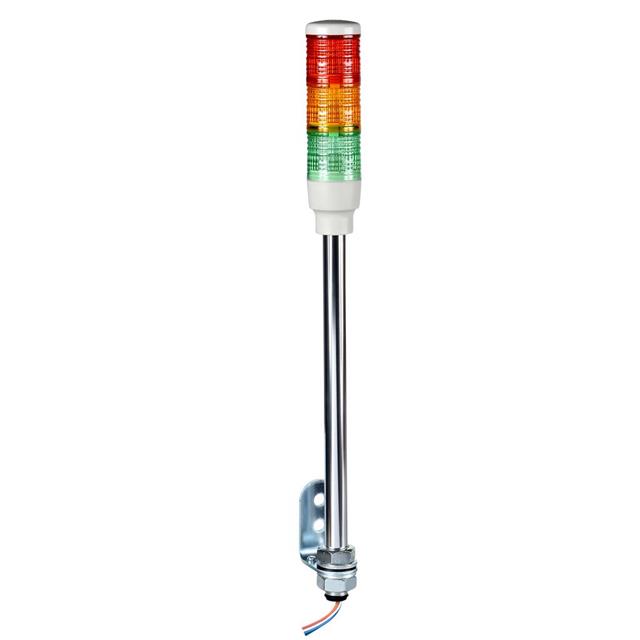

XVC4M3

Active

SQUARE D BY SCHNEIDER ELECTRIC

SIGNAL TOWER, HARMONY XVC4, 3 TIERS, GREEN, ORANGE, RED, CONTINUOUS, STEADY, 40MM DIA., 240VAC

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SIGNAL TOWER, HARMONY XVC4, 3 TIERS, GREEN, ORANGE, RED, CONTINUOUS, STEADY, 40MM DIA., 240VAC

Technical Specifications

Parameters and characteristics for this part

Specification	XVC4M3

Function - Lighting	Steady
Ingress Protection	IP23
Light Color	Red, Green, Orange
Number of Stacks	3
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC
Weight	771.1 g
Weight	1.7 lbs

Part	Light Color	Type	Number of Stacks	Ingress Protection	Function - Lighting	Weight	Weight	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
SQUARE D BY SCHNEIDER ELECTRIC XVC4M2	Orange Red	Complete Unit	2	IP23	Steady	771.1 g	1.7 lbs	Wire Leads	100 VAC	240 VAC	-10 °C	50 °C
SQUARE D BY SCHNEIDER ELECTRIC XVC4M35S	Green Orange Red	Complete Unit	3	IP23	Flashing Steady			Wire Leads	100 VAC	240 VAC	-10 °C	50 °C
SQUARE D BY SCHNEIDER ELECTRIC XVC4M3	Green Orange Red	Complete Unit	3	IP23	Steady	771.1 g	1.7 lbs	Wire Leads	100 VAC	240 VAC	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Complete Unit Green, Orange, Red LED Wire Leads
