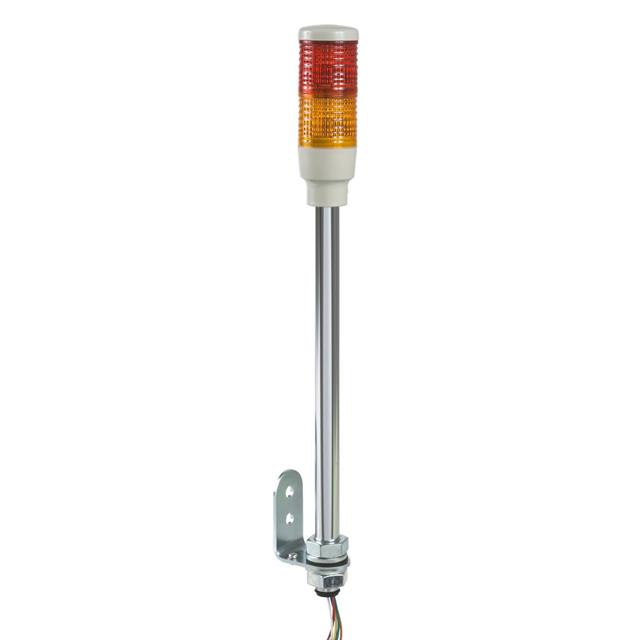

XVC4M2

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT ORG/RED 2STACK

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT ORG/RED 2STACK

Technical Specifications

Parameters and characteristics for this part

Specification	XVC4M2

Function - Lighting	Steady
Ingress Protection	IP23
Light Color	Orange, Red
Number of Stacks	2
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC
Weight	771.1 g
Weight	1.7 lbs

Part	Light Color	Type	Number of Stacks	Ingress Protection	Function - Lighting	Weight	Weight	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
SQUARE D BY SCHNEIDER ELECTRIC XVC4M2	Orange Red	Complete Unit	2	IP23	Steady	771.1 g	1.7 lbs	Wire Leads	100 VAC	240 VAC	-10 °C	50 °C
SQUARE D BY SCHNEIDER ELECTRIC XVC4M35S	Green Orange Red	Complete Unit	3	IP23	Flashing Steady			Wire Leads	100 VAC	240 VAC	-10 °C	50 °C
SQUARE D BY SCHNEIDER ELECTRIC XVC4M3	Green Orange Red	Complete Unit	3	IP23	Steady	771.1 g	1.7 lbs	Wire Leads	100 VAC	240 VAC	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 510.36

General part information

Stack Light Complete Unit Orange, Red LED Wire Leads
