MS-156-HRMJ-6

Active

Hirose Electric USA, Inc.

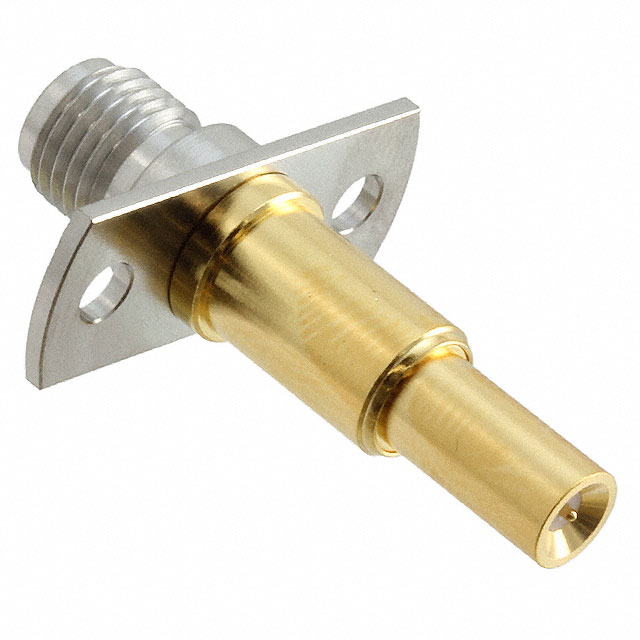

CONN ADAPT COAX PLUG TO SMA JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS-156-HRMJ-6

Active

Hirose Electric USA, Inc.

CONN ADAPT COAX PLUG TO SMA JACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS-156-HRMJ-6

Adapter Series	SMA to Coaxial Switch
Adapter Type	Plug to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Coaxial Switch - 4mm Plug Dia Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Push-Pull
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	10000
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

MS-156 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Impedance	Adapter Type	Mating Cycles	Dielectric Material	Fastening Type	Convert From (Adapter End)	Body Finish	Mounting Feature	Frequency - Max [Max]	Center Contact Material	Adapter Series	Conversion Type	Convert To (Adapter End)	Center Contact Plating	Style	Insertion Loss	Connector Type	Number of Ports	Housing Color	Features	Contact Termination	Mounting Type	Connector Style	Shield Termination
Hirose Electric USA, Inc. MS-156-HRMJ-12	85 °C	-40 °C	Beryllium Copper Stainless Steel	50 Ohms	Plug to Jack	10000	Polytetrafluoroethylene (PTFE)	Push-Pull Threaded	Coaxial Switch - 4mm Plug Dia Plug Male Pin	Gold; Passivated	Flange	6000 MHz	Beryllium Copper	SMA to Coaxial Switch	Between Series	Female Socket SMA Jack	Gold	Straight
Hirose Electric USA, Inc. MS-156-HRMJ-3A	85 °C	-40 °C	Stainless Steel	50 Ohms	Plug to Jack		Polytetrafluoroethylene (PTFE)	Push-Pull Threaded	Coaxial Switch - 4mm Plug Dia Plug Male Pin		Flange	6000 MHz	Beryllium Copper	SMA to Coaxial Switch	Between Series	Female Socket SMA Jack	Gold	Straight
Hirose Electric USA, Inc. MS-156C3(20)	85 °C	-40 °C	Phosphor Bronze	50 Ohms			Nylon 6T Polyamide (PA)	Snap-On		Gold		11 GHz	Copper Alloy				Gold		0.4 dB	Female Socket Receptacle	1	Gold	Internal Switch	Solder	Surface Mount	Coaxial Switch - 4mm Plug Dia	Solder
Hirose Electric USA, Inc. MS-156HF(20)	85 °C	-40 °C	Phosphor Bronze	50 Ohms			Nylon 6T Polyamide (PA)	Snap-On		Gold		6000 MHz	Beryllium Copper				Gold		0.15 dB	Female Socket Receptacle	1	Gold	Internal Switch	Solder	Surface Mount	Coaxial Switch - 4mm Plug Dia	Solder
Hirose Electric USA, Inc. MS-156-HRMJ-10	85 °C	-40 °C	Beryllium Copper Stainless Steel	50 Ohms	Plug to Jack	10000	Polytetrafluoroethylene (PTFE)	Push-Pull Threaded	Coaxial Switch - 4mm Plug Dia Plug Male Pin	Gold; Passivated	Flange	6000 MHz	Beryllium Copper	SMA to Coaxial Switch	Between Series	Female Socket SMA Jack	Gold	Straight
Hirose Electric USA, Inc. MS-156C(20)	85 °C	-40 °C	Phosphor Bronze	50 Ohms			Nylon 6T Polyamide (PA)	Snap-On		Gold		11 GHz	Copper Alloy				Gold		0.4 dB	Female Socket Receptacle	1	Gold	Internal Switch	Solder	Surface Mount	Coaxial Switch - 4mm Plug Dia	Solder
Hirose Electric USA, Inc. MS-156NB	85 °C	-40 °C	Phosphor Bronze	50 Ohms			Polyamide (PA) Nylon 9T	Snap-On		Gold		6000 MHz	Beryllium Copper				Gold		0.1 dB	Female Socket Receptacle	1	Gold	Internal Switch	Solder	Surface Mount	Coaxial Switch - 4mm Plug Dia	Solder
Hirose Electric USA, Inc. MS-156-HRMJ-6	85 °C	-40 °C	Beryllium Copper Stainless Steel	50 Ohms	Plug to Jack	10000	Polytetrafluoroethylene (PTFE)	Push-Pull Threaded	Coaxial Switch - 4mm Plug Dia Plug Male Pin	Gold; Passivated	Flange	6000 MHz	Beryllium Copper	SMA to Coaxial Switch	Between Series	Female Socket SMA Jack	Gold	Straight
Hirose Electric USA, Inc. MS-156-HRMJ-5	85 °C	-40 °C	Phosphor Bronze Stainless Steel	50 Ohms	Plug to Jack	500	Polytetrafluoroethylene (PTFE)	Push-Pull Threaded	Coaxial Switch - 4mm Plug Dia Plug Male Pin	Nickel; Passivated	Flange	6000 MHz	Beryllium Copper	SMA to Coaxial Switch	Between Series	Female Socket SMA Jack	Gold	Straight

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 74.42

Description

General part information

MS-156 Series

Adapter Coaxial Connector Coaxial Switch - 4mm Plug Dia Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
