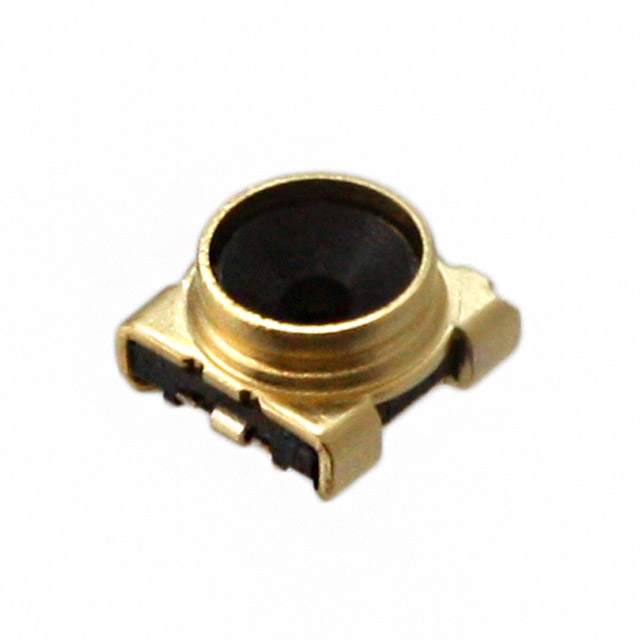

MS-156C(20)
ActiveHirose Electric USA, Inc.
CONN COAX SWITCH RCPT STR 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS-156C(20)
ActiveHirose Electric USA, Inc.
CONN COAX SWITCH RCPT STR 50OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS-156C(20) |
|---|---|
| Body Finish | Gold |
| Body Material | Phosphor Bronze |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Coaxial Switch - 4mm Plug Dia |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polyamide (PA), Nylon 6T |
| Fastening Type | Snap-On |
| Features | Internal Switch |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.4 dB |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
