325320-07-0

Active

Curtis Industries

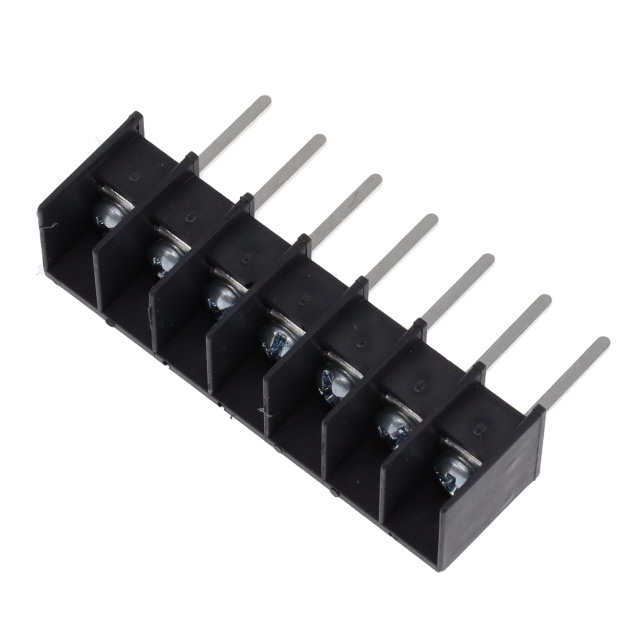

CONN BARRIER STRIP 7CIRC 0.325"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 7CIRC 0.325"

Technical Specifications

Parameters and characteristics for this part

Specification	325320-07-0

Barrier Type	3 Wall (Tri)
Bottom Termination	Wire Wrap
Current Rating (Amps)	15 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	7
Number of Rows	1
Number of Wire Entries	7
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

Part	Top Termination	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature	Number of Rows	Current Rating (Amps)	Number of Circuits	Pitch [x]	Pitch [x]	Voltage Rating	Barrier Type	Bottom Termination	Material - Insulation	Material Flammability Rating	Terminal Screw Material	Terminal Block Type	Mounting Type	Number of Wire Entries [custom]
Curtis Industries 325320-12-0	Screws	12	14 AWG	22 AWG	105 C	1	15 A	12	8.26 mm	0.325 in	300 VDC	3 Wall (Tri)	Wire Wrap	Polypropylene (PP)	UL94 V-0	Steel	Barrier Block	Through Hole
Curtis Industries 325320-23-0	Screws		14 AWG	22 AWG	105 C	1	15 A	23	8.26 mm	0.325 in	300 VDC	3 Wall (Tri)	Wire Wrap	Polypropylene (PP)	UL94 V-0	Steel	Barrier Block	Through Hole	23
Curtis Industries 325320-10-0	Screws	10	14 AWG	22 AWG	105 C	1	15 A	10	8.26 mm	0.325 in	300 VDC	3 Wall (Tri)	Wire Wrap	Polypropylene (PP)	UL94 V-0	Steel	Barrier Block	Through Hole
Curtis Industries 325320-07-0	Screws	7	14 AWG	22 AWG	105 C	1	15 A	7	8.26 mm	0.325 in	300 VDC	3 Wall (Tri)	Wire Wrap	Polypropylene (PP)	UL94 V-0	Steel	Barrier Block	Through Hole
Curtis Industries 325320-11-0	Screws	11	14 AWG	22 AWG	105 C	1	15 A	11	8.26 mm	0.325 in	300 VDC	3 Wall (Tri)	Wire Wrap	Polypropylene (PP)	UL94 V-0	Steel	Barrier Block	Through Hole
Curtis Industries 325320-15-0	Screws	15	14 AWG	22 AWG	105 C	1	15 A	15	8.26 mm	0.325 in	300 VDC	3 Wall (Tri)	Wire Wrap	Polypropylene (PP)	UL94 V-0	Steel	Barrier Block	Through Hole
Curtis Industries 325320-19-0	Screws	19	14 AWG	22 AWG	105 C	1	15 A	19	8.26 mm	0.325 in	300 VDC	3 Wall (Tri)	Wire Wrap	Polypropylene (PP)	UL94 V-0	Steel	Barrier Block	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
