325320-12-0
ActiveCurtis Industries

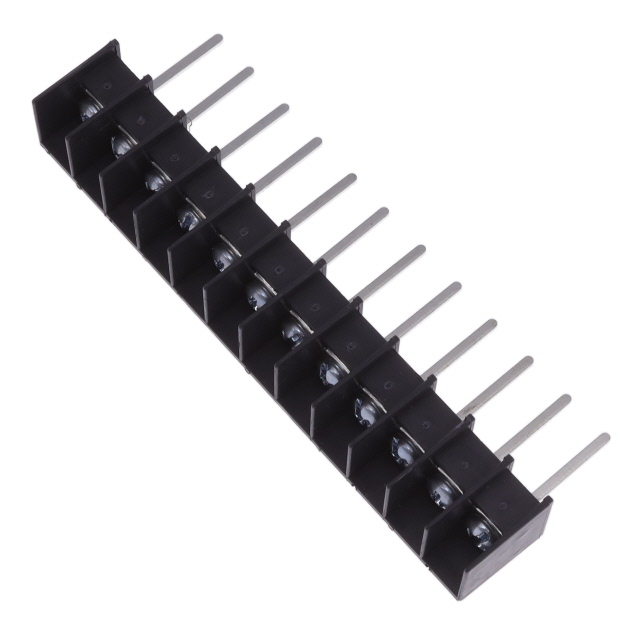

CONN BARRIER STRP 12CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325320-12-0
ActiveCurtis Industries
CONN BARRIER STRP 12CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325320-12-0 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | Wire Wrap |
| Current Rating (Amps) | 15 A |
| Material - Insulation | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 12 |
| Number of Rows | 1 |
| Number of Wire Entries | 12 |
| Operating Temperature | 105 C |
| Pitch [x] | 8.26 mm |
| Pitch [x] | 0.325 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
325320 Series
| Part | Top Termination | Number of Wire Entries | Wire Gauge [Min] | Wire Gauge [Max] | Operating Temperature | Number of Rows | Current Rating (Amps) | Number of Circuits | Pitch [x] | Pitch [x] | Voltage Rating | Barrier Type | Bottom Termination | Material - Insulation | Material Flammability Rating | Terminal Screw Material | Terminal Block Type | Mounting Type | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | Screws | 12 | 14 AWG | 22 AWG | 105 C | 1 | 15 A | 12 | 8.26 mm | 0.325 in | 300 VDC | 3 Wall (Tri) | Wire Wrap | Polypropylene (PP) | UL94 V-0 | Steel | Barrier Block | Through Hole | |
Curtis Industries | Screws | 14 AWG | 22 AWG | 105 C | 1 | 15 A | 23 | 8.26 mm | 0.325 in | 300 VDC | 3 Wall (Tri) | Wire Wrap | Polypropylene (PP) | UL94 V-0 | Steel | Barrier Block | Through Hole | 23 | |
Curtis Industries | Screws | 10 | 14 AWG | 22 AWG | 105 C | 1 | 15 A | 10 | 8.26 mm | 0.325 in | 300 VDC | 3 Wall (Tri) | Wire Wrap | Polypropylene (PP) | UL94 V-0 | Steel | Barrier Block | Through Hole | |
Curtis Industries | Screws | 7 | 14 AWG | 22 AWG | 105 C | 1 | 15 A | 7 | 8.26 mm | 0.325 in | 300 VDC | 3 Wall (Tri) | Wire Wrap | Polypropylene (PP) | UL94 V-0 | Steel | Barrier Block | Through Hole | |
Curtis Industries | Screws | 11 | 14 AWG | 22 AWG | 105 C | 1 | 15 A | 11 | 8.26 mm | 0.325 in | 300 VDC | 3 Wall (Tri) | Wire Wrap | Polypropylene (PP) | UL94 V-0 | Steel | Barrier Block | Through Hole | |
Curtis Industries | Screws | 15 | 14 AWG | 22 AWG | 105 C | 1 | 15 A | 15 | 8.26 mm | 0.325 in | 300 VDC | 3 Wall (Tri) | Wire Wrap | Polypropylene (PP) | UL94 V-0 | Steel | Barrier Block | Through Hole | |
Curtis Industries | Screws | 19 | 14 AWG | 22 AWG | 105 C | 1 | 15 A | 19 | 8.26 mm | 0.325 in | 300 VDC | 3 Wall (Tri) | Wire Wrap | Polypropylene (PP) | UL94 V-0 | Steel | Barrier Block | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.43 | |
| 10 | $ 6.69 | |||
| 30 | $ 5.77 | |||
| 50 | $ 5.43 | |||
| 100 | $ 5.04 | |||
| 250 | $ 4.64 | |||
| 500 | $ 4.42 | |||
| 1000 | $ 4.24 | |||
Description
General part information
325320 Series
12 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
