RAVHD19ETR
ActiveSwitchcraft Inc.

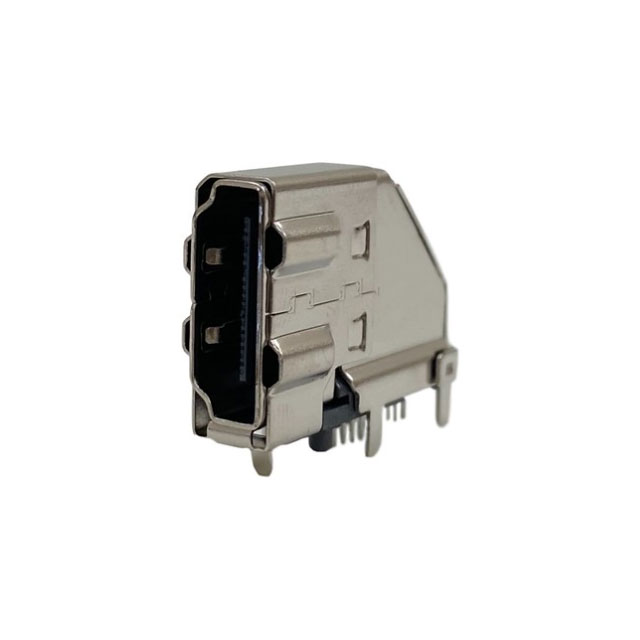

HDMI TYPE A RECEPTACLE, VERTICAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAVHD19ETR
ActiveSwitchcraft Inc.
HDMI TYPE A RECEPTACLE, VERTICAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAVHD19ETR |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 5000 |
| Mounting Feature | Vertical, Flag |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | HDMI 2.0 |
| Termination | Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.18 | |
| 10 | $ 2.88 | |||
| 25 | $ 2.73 | |||
| 50 | $ 2.67 | |||
| Tape & Reel (TR) | 110 | $ 2.54 | ||
| 330 | $ 2.24 | |||
Description
General part information
RAVHD1 Series
HDMI HDMI 2.0 Receptacle Connector 19 Position Through Hole, Right Angle
