SM1206NAC-IL

Active

Bivar Inc.

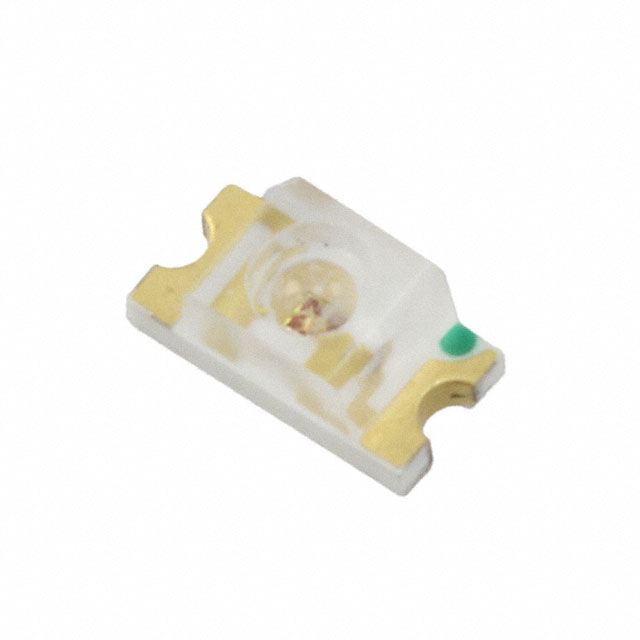

LED, SMD, 1206, AMBER, 610NM, 1450MCD, WATER CLEAR LENS, 30 DEG VIEWING ANGLE / REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM1206NAC-IL

Active

Bivar Inc.

LED, SMD, 1206, AMBER, 610NM, 1450MCD, WATER CLEAR LENS, 30 DEG VIEWING ANGLE / REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM1206NAC-IL

Color	Amber
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.4 mm
Lens Color	Colorless
Lens Size [diameter]	1.1 mm
Lens Transparency	Clear
Millicandela Rating	1450 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	605 nm
Wavelength - Peak	610 nm

SM1206 Series

Part	Lens Transparency	Current - Test	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Viewing Angle	Millicandela Rating	Wavelength - Dominant	Configuration	Height (Max) [Max] [z]	Lens Color	Color	Lens Size [diameter]	Lens Size [y]	Lens Size [x]	Lens Style	Current - DC Forward (If) (Max) [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength [Max]	Wavelength [Min]	Type	Wavelength - Dominant [custom]
Bivar Inc. SM1206HC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	660 nm	2 V	1206	140 °	45 mcd	643 nm	Standard	1.4 mm	Colorless	Red	1.1 mm
Bivar Inc. SM1206UOC	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	630 nm	2.1 V	1206	140 °	80 mcd	625 nm	Standard	1.1 mm	Colorless			1.6 mm	2 mm	Rectangle with Flat Top
Bivar Inc. SM1206RC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	700 nm	2 V	1206	30 °	2.1 mcd	645 nm	Standard	1.4 mm	Colorless	Red	1.1 mm
Bivar Inc. SM1206NBWC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	468 nm	3.1 V	1206	30 °	950 mcd	470 nm	Standard	1.4 mm	Colorless	Blue	1.1 mm
Bivar Inc. SM1206UV-400-IL			Surface Mount			1206 (3216 Metric)		3.4 V		30 °											25 mA	Top View	80 °C	-30 °C	405 nm	400 nm	Ultraviolet (UV)
Bivar Inc. SM1206NAC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	610 nm	2.1 V	1206	30 °	1450 mcd	605 nm	Standard	1.4 mm	Colorless	Amber	1.1 mm
Bivar Inc. SM1206YC	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	583 nm	2 V	1206	140 °	6 mcd		Standard	1.1 mm	Colorless	Yellow		1.6 mm	2 mm	Rectangle with Flat Top								585 nm
Bivar Inc. SM1206NHC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	630 nm	2.1 V	1206	30 °	1250 mcd	625 nm	Standard	1.4 mm	Colorless	Red	1.1 mm
Bivar Inc. SM1206SRC	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	660 nm	1.85 V	1206	140 °	28 mcd	640 nm	Standard	1.1 mm	Colorless	Red		1.6 mm	2 mm	Rectangle with Flat Top
Bivar Inc. SM1206YC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	583 nm	2 V	1206	30 °	16 mcd		Standard	1.4 mm	Colorless	Yellow	1.1 mm											585 nm
