SM1206SRC

Active

Bivar Inc.

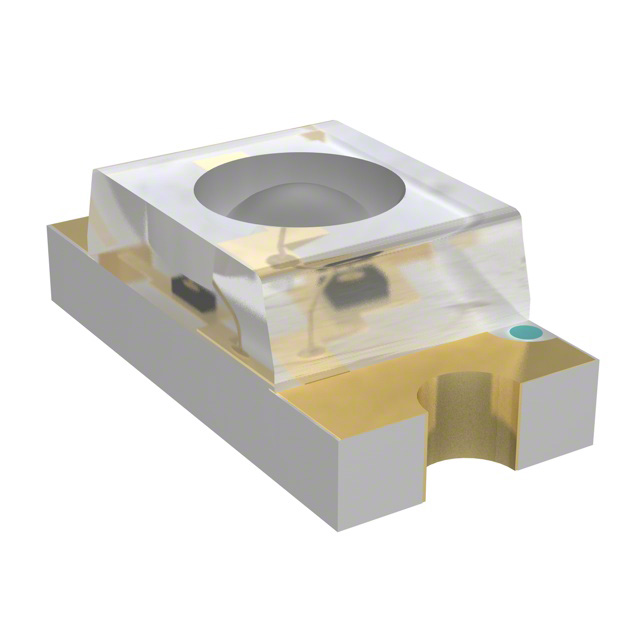

LED, SMD, 1206, SUPER RED, 660NM, 28MCD, WATER CLEAR LENS, 140 DEG VIEWING ANGLE / REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SM1206SRC

Active

Bivar Inc.

LED, SMD, 1206, SUPER RED, 660NM, 28MCD, WATER CLEAR LENS, 140 DEG VIEWING ANGLE / REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM1206SRC

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1.6 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	28 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Dominant	640 nm
Wavelength - Peak	660 nm

SM1206 Series

Part	Lens Transparency	Current - Test	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Viewing Angle	Millicandela Rating	Wavelength - Dominant	Configuration	Height (Max) [Max] [z]	Lens Color	Color	Lens Size [diameter]	Lens Size [y]	Lens Size [x]	Lens Style	Current - DC Forward (If) (Max) [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength [Max]	Wavelength [Min]	Type	Wavelength - Dominant [custom]
Bivar Inc. SM1206HC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	660 nm	2 V	1206	140 °	45 mcd	643 nm	Standard	1.4 mm	Colorless	Red	1.1 mm
Bivar Inc. SM1206UOC	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	630 nm	2.1 V	1206	140 °	80 mcd	625 nm	Standard	1.1 mm	Colorless			1.6 mm	2 mm	Rectangle with Flat Top
Bivar Inc. SM1206RC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	700 nm	2 V	1206	30 °	2.1 mcd	645 nm	Standard	1.4 mm	Colorless	Red	1.1 mm
Bivar Inc. SM1206NBWC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	468 nm	3.1 V	1206	30 °	950 mcd	470 nm	Standard	1.4 mm	Colorless	Blue	1.1 mm
Bivar Inc. SM1206UV-400-IL			Surface Mount			1206 (3216 Metric)		3.4 V		30 °											25 mA	Top View	80 °C	-30 °C	405 nm	400 nm	Ultraviolet (UV)
Bivar Inc. SM1206NAC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	610 nm	2.1 V	1206	30 °	1450 mcd	605 nm	Standard	1.4 mm	Colorless	Amber	1.1 mm
Bivar Inc. SM1206YC	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	583 nm	2 V	1206	140 °	6 mcd		Standard	1.1 mm	Colorless	Yellow		1.6 mm	2 mm	Rectangle with Flat Top								585 nm
Bivar Inc. SM1206NHC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	630 nm	2.1 V	1206	30 °	1250 mcd	625 nm	Standard	1.4 mm	Colorless	Red	1.1 mm
Bivar Inc. SM1206SRC	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	660 nm	1.85 V	1206	140 °	28 mcd	640 nm	Standard	1.1 mm	Colorless	Red		1.6 mm	2 mm	Rectangle with Flat Top
Bivar Inc. SM1206YC-IL	Clear	20 mA	Surface Mount	1.6 mm	3.2 mm	1206 (3216 Metric)	583 nm	2 V	1206	30 °	16 mcd		Standard	1.4 mm	Colorless	Yellow	1.1 mm											585 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.18
		6000	$ 0.17
		15000	$ 0.16
		30000	$ 0.16
Newark	Each	2500	$ 0.20
		10000	$ 0.19

Description

General part information

SM1206 Series

Red 640nm LED Indication - Discrete 1.85V 1206 (3216 Metric)
