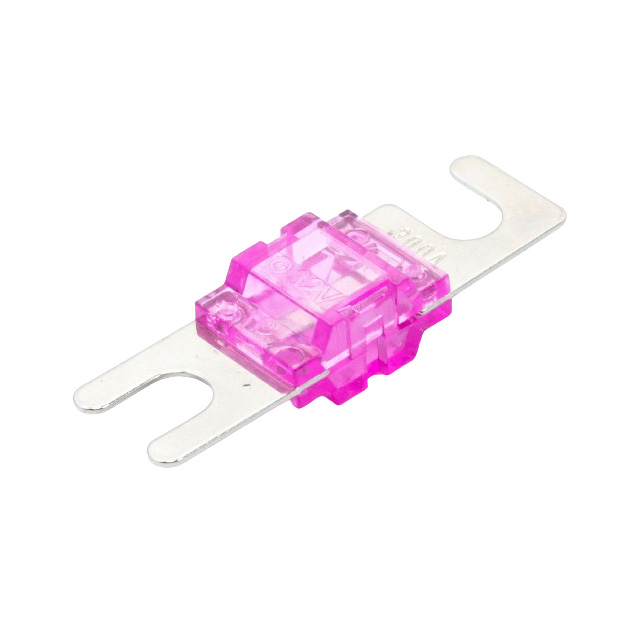

MID-200A

Active

OptiFuse

FUSE AUTO 200A 32VDC AUTO LINK

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 200A 32VDC AUTO LINK

Technical Specifications

Parameters and characteristics for this part

Specification	MID-200A

Breaking Capacity @ Rated Voltage	1 kA
Color	Violet
Current Rating (Amps)	200 A
Fuse Type	Automotive
Mounting Type	Bolt Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Auto Link
Response Time	Fast Blow
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	0.472 "
Size / Dimension [y]	12 mm
Size / Dimension [z]	0.323 "
Size / Dimension [z]	8.2 mm
Voltage Rating - DC	32 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current Rating (Amps)	Response Time	Fuse Type	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	DC Cold Resistance	Color
OptiFuse MID-30A	125 °C	-40 °C	Auto Link	30 A	Fast Blow	Automotive	1 kA	32 V	Bolt Mount	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm
OptiFuse MID-100A	125 °C	-40 °C	Auto Link	100 A	Fast Blow	Automotive	1 kA	32 V	Bolt Mount	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm	0.00045 Ohms	Blue
OptiFuse MID-150A	125 °C	-40 °C	Auto Link	150 A	Fast Blow	Automotive	1 kA	32 V	Bolt Mount	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm	0.00033 Ohms	Gray
OptiFuse MID-60A	125 °C	-40 °C	Auto Link	60 A	Fast Blow	Automotive	1 kA	32 V	Bolt Mount	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm	0.00087 Ohms	Yellow
OptiFuse MID-200A	125 °C	-40 °C	Auto Link	200 A	Fast Blow	Automotive	1 kA	32 V	Bolt Mount	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm		Violet
OptiFuse MID-50A	125 °C	-40 °C	Auto Link	50 A	Fast Blow	Automotive	1 kA	32 V	Bolt Mount	0.472 "	12 mm	0.63 "	0.323 "	8.2 mm	16 mm	0.00104 Ohms	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.29

General part information

200 A AC 32 V DC Fuse Automotive Bolt Mount Auto Link
