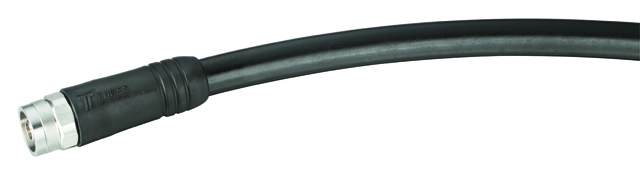

LMR-600-FR-PVC

Active

Amphenol Times Microwave Systems

LMR-600 W/ FRPVC JKT, LISTED CMR

Deep-Dive with AI

Search across all available documentation for this part.

LMR-600-FR-PVC

Active

Amphenol Times Microwave Systems

LMR-600 W/ FRPVC JKT, LISTED CMR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-600-FR-PVC

Cable Type	Coaxial - Riser
Conductor Material	Aluminum, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	11.56 mm
Dielectric Diameter [diameter]	0.455 in
Dielectric Material	Foam Polyethylene (FPE)
Features	Fire Retardant
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	14.99 mm
Jacket (Insulation) Diameter [diameter]	0.59 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Black
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	85

LMR-600 Series

Part	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Jacket (Insulation) Material	Conductor Material	Cable Type	Length [x]	Length [x]	Shield Type	Dielectric Material	VoP, Velocity of Propagation	Conductor Strand	Jacket Color	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length	Length
Amphenol Times Microwave Systems LMR-600-LSZH	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Low Smoke Zero Halogen (LSZH) Polyethylene (PE)	Copper Bare	Coaxial	1 ft	300 mm	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in
Amphenol Times Microwave Systems LMR-600-FR	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Polyethylene (PE) Riser	Aluminum Copper Coated	Coaxial - Riser	10 ft 100 ft	3.05 m 30.48 m	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Fire Retardant	15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600-DB	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Polyethylene (PE)	Aluminum Copper Coated	Coaxial	10 ft 100 ft	3.05 m 30.48 m	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Direct Burial Watertight	15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Polyethylene (PE)	Aluminum Copper Coated	Coaxial	10 ft 100 ft	3.05 m 30.48 m	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in		15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600-LLPL	Aluminum Copper Tinned	75 ░C	-5 °C	50 Ohms	Plenum Poly-Vinyl Chloride (PVC)	Aluminum Copper Coated	Coaxial - Plenum			Braid	Polytetrafluoroethylene (PTFE)	76	Solid	Orange	11.56 mm	0.455 in	14.99 mm	0.59 in	Flame Retardant	15.24 m	50 ft
Amphenol Times Microwave Systems LMR-600-PVC	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Poly-Vinyl Chloride (PVC)	Aluminum Copper Coated	Coaxial			Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in
Amphenol Times Microwave Systems LMR-600-PVC-W	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Poly-Vinyl Chloride (PVC)	Aluminum Copper Coated	Coaxial			Braid	Foam Polyethylene (FPE)	85	Solid		11.56 mm	0.455 in	14.99 mm	0.59 in
Amphenol Times Microwave Systems LMR-600-LLPX	Aluminum Copper Tinned	125 °C	-40 °C	50 Ohms	Fluoropolymer Plenum	Aluminum Copper Coated	Coaxial - Plenum	10 ft 100 ft	3.05 m 30.48 m	Braid Foil	Polytetrafluoroethylene (PTFE)	76	Solid	Red	11.56 mm	0.455 in	14.35 mm	0.565 in		15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600-75-DB	Aluminum Copper Tinned	85 °C	-40 °C	75 Ohms	Polyethylene (PE)	Aluminum Copper Coated	Coaxial			Braid	Foam Polyethylene (FPE)	87	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Direct Burial
Amphenol Times Microwave Systems LMR-600-FR-PVC	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Poly-Vinyl Chloride (PVC) Riser	Aluminum Copper Coated	Coaxial - Riser			Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Fire Retardant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.49

Description

General part information

LMR-600 Series

Coaxial - Riser Cable 50 Ohms
