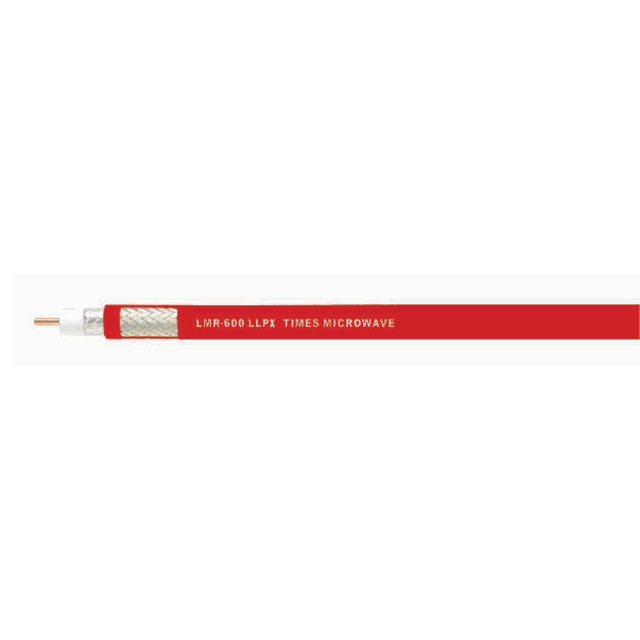

LMR-600-LLPX

Unknown

Amphenol Times Microwave Systems

LMR-600 LOW LOSS PLENUM, 250'

Deep-Dive with AI

Search across all available documentation for this part.

LMR-600-LLPX

Unknown

Amphenol Times Microwave Systems

LMR-600 LOW LOSS PLENUM, 250'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-600-LLPX

Cable Type	Coaxial - Plenum
Conductor Material	Aluminum, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	11.56 mm
Dielectric Diameter [diameter]	0.455 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	14.35 mm
Jacket (Insulation) Diameter [diameter]	0.565 in
Jacket (Insulation) Material	Fluoropolymer, Plenum
Jacket Color	Red
Length	76.2 m, 15.24 m
Length	3000 ", 50 ft
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	76

LMR-600 Series

Part	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Jacket (Insulation) Material	Conductor Material	Cable Type	Length [x]	Length [x]	Shield Type	Dielectric Material	VoP, Velocity of Propagation	Conductor Strand	Jacket Color	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length	Length
Amphenol Times Microwave Systems LMR-600-LSZH	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Low Smoke Zero Halogen (LSZH) Polyethylene (PE)	Copper Bare	Coaxial	1 ft	300 mm	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in
Amphenol Times Microwave Systems LMR-600-FR	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Polyethylene (PE) Riser	Aluminum Copper Coated	Coaxial - Riser	10 ft 100 ft	3.05 m 30.48 m	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Fire Retardant	15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600-DB	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Polyethylene (PE)	Aluminum Copper Coated	Coaxial	10 ft 100 ft	3.05 m 30.48 m	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Direct Burial Watertight	15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Polyethylene (PE)	Aluminum Copper Coated	Coaxial	10 ft 100 ft	3.05 m 30.48 m	Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in		15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600-LLPL	Aluminum Copper Tinned	75 ░C	-5 °C	50 Ohms	Plenum Poly-Vinyl Chloride (PVC)	Aluminum Copper Coated	Coaxial - Plenum			Braid	Polytetrafluoroethylene (PTFE)	76	Solid	Orange	11.56 mm	0.455 in	14.99 mm	0.59 in	Flame Retardant	15.24 m	50 ft
Amphenol Times Microwave Systems LMR-600-PVC	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Poly-Vinyl Chloride (PVC)	Aluminum Copper Coated	Coaxial			Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in
Amphenol Times Microwave Systems LMR-600-PVC-W	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Poly-Vinyl Chloride (PVC)	Aluminum Copper Coated	Coaxial			Braid	Foam Polyethylene (FPE)	85	Solid		11.56 mm	0.455 in	14.99 mm	0.59 in
Amphenol Times Microwave Systems LMR-600-LLPX	Aluminum Copper Tinned	125 °C	-40 °C	50 Ohms	Fluoropolymer Plenum	Aluminum Copper Coated	Coaxial - Plenum	10 ft 100 ft	3.05 m 30.48 m	Braid Foil	Polytetrafluoroethylene (PTFE)	76	Solid	Red	11.56 mm	0.455 in	14.35 mm	0.565 in		15.24 m 76.2 m	50 ft 3000 "
Amphenol Times Microwave Systems LMR-600-75-DB	Aluminum Copper Tinned	85 °C	-40 °C	75 Ohms	Polyethylene (PE)	Aluminum Copper Coated	Coaxial			Braid	Foam Polyethylene (FPE)	87	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Direct Burial
Amphenol Times Microwave Systems LMR-600-FR-PVC	Aluminum Copper Tinned	85 °C	-40 °C	50 Ohms	Poly-Vinyl Chloride (PVC) Riser	Aluminum Copper Coated	Coaxial - Riser			Braid	Foam Polyethylene (FPE)	85	Solid	Black	11.56 mm	0.455 in	14.99 mm	0.59 in	Fire Retardant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 760.17
		1	$ 137.73
		1	$ 1517.17
		3	$ 127.42
		3	$ 703.26
		5	$ 123.00
		7	$ 120.05
		10	$ 117.11

Description

General part information

LMR-600 Series

Coaxial - Plenum Cable 250.0' (76.20m) 50 Ohms

Documents

Technical documentation and resources

No documents available
