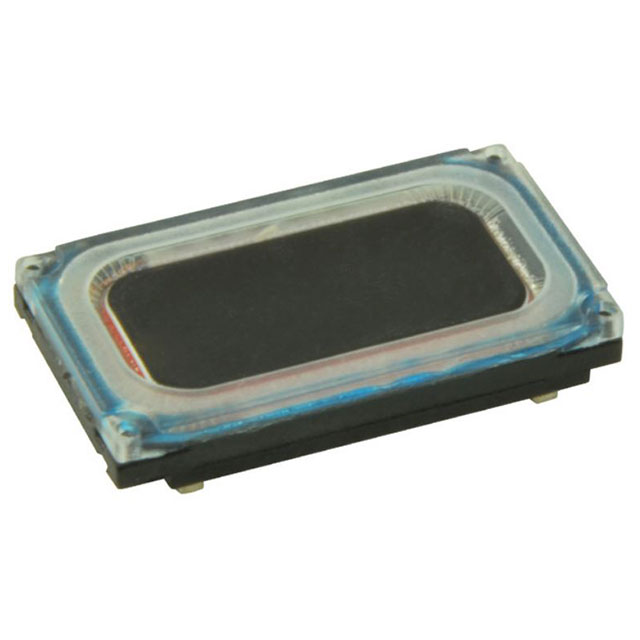

CMS-16093-076L100B-67
ActiveCUI Devices
SPEAKER 6OHM 700MW TOP PORT 90DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMS-16093-076L100B-67
ActiveCUI Devices
SPEAKER 6OHM 700MW TOP PORT 90DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-16093-076L100B-67 |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 700 mW, 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 600 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 100 Hz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Impedance | 6 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | General Purpose |
CMS-16093 Series
| Part | Frequency - Self Resonant | Efficiency - Type | Technology | Type | Power - Rated | Efficiency - Testing | Shape | Port Location | Efficiency - dBA | Height - Seated (Max) | Height - Seated (Max) [Max] | Impedance | Power - Max [Max] | Frequency Range [Max] | Frequency Range [Min] | Termination | Material - Magnet | Material - Cone | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | 550 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 91 dBA | 3 mm | 0.118 in | 8 Ohms | 1 W | 20 kHz | 100 Hz | Solder Pads | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | |||
CUI Devices | 600 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 90 dBA | 3 mm | 0.118 in | 6 Ohms | 1 W | 20 kHz | 100 Hz | Wire Leads with Connector | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | -20 C | 70 °C | |
CUI Devices | 550 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 91 dBA | 3 mm | 0.118 in | 8 Ohms | 1 W | 20 kHz | 100 Hz | Wire Leads with Connector | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | -20 C | 50 °C | |
CUI Devices | 550 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 91 dBA | 3 mm | 0.118 in | 8 Ohms | 1 W | 20 kHz | 100 Hz | Wire Leads with Connector | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | -20 C | 50 °C | |
CUI Devices | 550 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 91 dBA | 3 mm | 0.118 in | 8 Ohms | 1 W | 20 kHz | 100 Hz | Wire Leads with Connector | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | -20 C | 50 °C | IP67 - Dust Tight Waterproof |
CUI Devices | 600 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 90 dBA | 3 mm | 0.118 in | 6 Ohms | 1 W | 20 kHz | 100 Hz | Solder Pads | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | |||
CUI Devices | 550 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 91 dBA | 3 mm | 0.118 in | 8 Ohms | 1 W | 20 kHz | 100 Hz | Spring Type | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | |||
CUI Devices | 600 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 90 dBA | 3 mm | 0.118 in | 6 Ohms | 1 W | 20 kHz | 100 Hz | Wire Leads with Connector | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | -20 C | 70 °C | IP67 - Dust Tight Waterproof |
CUI Devices | 600 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 90 dBA | 3 mm | 0.118 in | 6 Ohms | 1 W | 20 kHz | 100 Hz | Wire Leads | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | IP67 - Dust Tight Waterproof | ||
CUI Devices | 600 Hz | Sound Pressure Level (SPL) | Magnetic | General Purpose | 700 mW | 100 mm 700 mW | Rectangular | Top | 90 dBA | 3 mm | 0.118 in | 6 Ohms | 1 W | 20 kHz | 100 Hz | Wire Leads with Connector | Nd-Fe-B | Polyester Polyethylene Terephthalate (PET) | 9 mm | 0.354 in | 0.63 " | 16 mm | -20 C | 70 °C | IP67 - Dust Tight Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.67 | |
| 10 | $ 1.38 | |||
| 25 | $ 1.28 | |||
| 40 | $ 1.27 | |||
Description
General part information
CMS-16093 Series
6 Ohms General Purpose Speaker 700 mW 100 Hz ~ 20 kHz Top Rectangular
