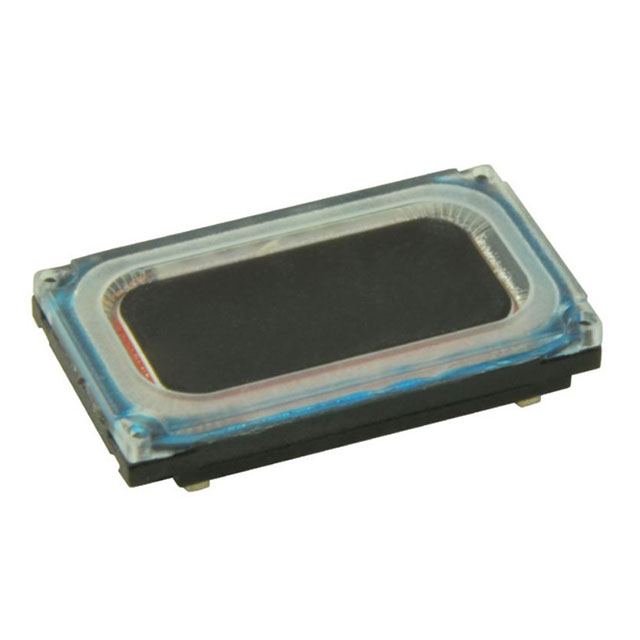

CMS-16093-078L100B

Active

CUI Devices

SPEAKERS MICRO NEODYMIUM IRON BORON 550HZ 1W 91DBA 8OHM RECTANGULAR SOLDER PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMS-16093-078L100B

Active

CUI Devices

SPEAKERS MICRO NEODYMIUM IRON BORON 550HZ 1W 91DBA 8OHM RECTANGULAR SOLDER PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-16093-078L100B

Efficiency - dBA	91 dBA
Efficiency - Testing	700 mW, 100 mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	550 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	100 Hz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	700 mW
Shape	Rectangular
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	9 mm
Size / Dimension [y]	0.354 in
Technology	Magnetic
Termination	Wire Leads with Connector
Type	General Purpose

CMS-16093 Series

Part	Frequency - Self Resonant	Efficiency - Type	Technology	Type	Power - Rated	Efficiency - Testing	Shape	Port Location	Efficiency - dBA	Height - Seated (Max)	Height - Seated (Max) [Max]	Impedance	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Termination	Material - Magnet	Material - Cone	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
CUI Devices CMS-16093-078SP	550 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	91 dBA	3 mm	0.118 in	8 Ohms	1 W	20 kHz	100 Hz	Solder Pads	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm
CUI Devices CMS-16093-076L100B	600 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	90 dBA	3 mm	0.118 in	6 Ohms	1 W	20 kHz	100 Hz	Wire Leads with Connector	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm	-20 C	70 °C
CUI Devices CMS-16093-078L100A	550 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	91 dBA	3 mm	0.118 in	8 Ohms	1 W	20 kHz	100 Hz	Wire Leads with Connector	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm	-20 C	50 °C
CUI Devices CMS-16093-078L100B	550 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	91 dBA	3 mm	0.118 in	8 Ohms	1 W	20 kHz	100 Hz	Wire Leads with Connector	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm	-20 C	50 °C
CUI Devices CMS-16093-078L100A-67	550 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	91 dBA	3 mm	0.118 in	8 Ohms	1 W	20 kHz	100 Hz	Wire Leads with Connector	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm	-20 C	50 °C	IP67 - Dust Tight Waterproof
CUI Devices CMS-16093-076SP	600 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	90 dBA	3 mm	0.118 in	6 Ohms	1 W	20 kHz	100 Hz	Solder Pads	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm
CUI Devices CMS-16093-078S	550 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	91 dBA	3 mm	0.118 in	8 Ohms	1 W	20 kHz	100 Hz	Spring Type	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm
CUI Devices CMS-16093-076L100B-67	600 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	90 dBA	3 mm	0.118 in	6 Ohms	1 W	20 kHz	100 Hz	Wire Leads with Connector	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm	-20 C	70 °C	IP67 - Dust Tight Waterproof
CUI Devices CMS-16093-076L100-67	600 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	90 dBA	3 mm	0.118 in	6 Ohms	1 W	20 kHz	100 Hz	Wire Leads	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm			IP67 - Dust Tight Waterproof
CUI Devices CMS-16093-076L100A-67	600 Hz	Sound Pressure Level (SPL)	Magnetic	General Purpose	700 mW	100 mm 700 mW	Rectangular	Top	90 dBA	3 mm	0.118 in	6 Ohms	1 W	20 kHz	100 Hz	Wire Leads with Connector	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	9 mm	0.354 in	0.63 "	16 mm	-20 C	70 °C	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.59
		10	$ 1.31
		25	$ 1.21
		40	$ 1.21

Description

General part information

CMS-16093 Series

8 Ohms General Purpose Speaker 700 mW 100 Hz ~ 20 kHz Top Rectangular
