UB26KKG015C

Active

NKK Switches

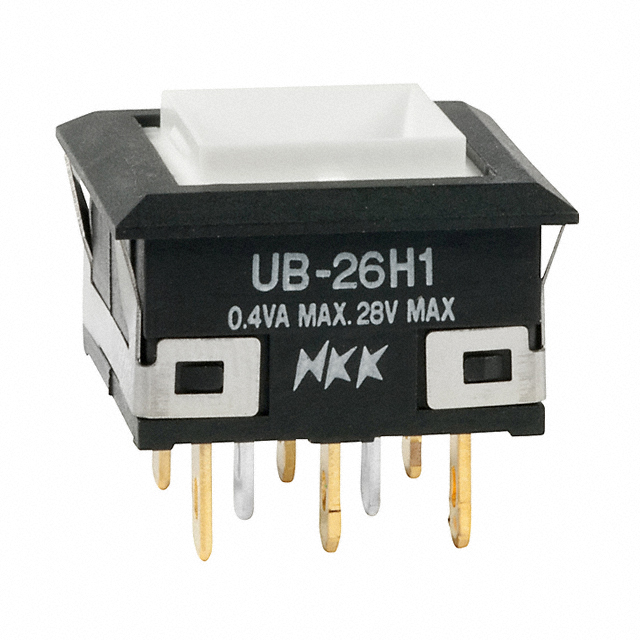

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB26KKG015C

Active

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB26KKG015C

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Stainless Steel
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.85 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB16SKG Series

...

Part	Voltage Rating - DC	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Illumination Type, Color	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Termination Style	Electrical Life	Mechanical Life	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Type	Circuit	Features	Color - Actuator/Cap
NKK Switches UB26KKG015C	28 V	No Marking	16.2 mm	16.2 mm	1.85 VDC	LED Red	Plunger for Cap	28 V	0.4 VA	Panel Mount Snap-In	Solder Lug	200000 Cycles	200000 Cycles	On-On	50 °C	-25 °C	Illuminated Standard	DPDT	Stainless Steel
NKK Switches UB16SKG03N	28 V	No Marking					Plunger for Cap	28 V	0.4 VA	Through Hole	PC Pin	200000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	Process Sealed
NKK Switches UB26NBKW015C-CB	30 V	No Marking	22.4 mm	16.2 mm	1.85 VDC	LED Red	Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	200000 Cycles	On-On	50 °C	-25 °C	Illuminated Standard	DPDT	With Barrier	Red
NKK Switches UB16NBKW01N-B	30 V	No Marking	22.4 mm	16.2 mm			Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	With Barrier	White
NKK Switches UB15NBKW01N-E	30 V	No Marking	22.4 mm	16.2 mm			Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	1000000 Cycles	On-Mom	70 °C	-20 C	Standard	SPDT	With Barrier	Yellow
NKK Switches UB16NBKG01N-A	28 V	No Marking	22.4 mm	16.2 mm			Rectangular Button	28 V	0.4 VA	Panel Mount Snap-In	Solder Lug	200000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	With Barrier	Black
NKK Switches UB26SKG035D	28 V	No Marking			2 VDC	Amber LED	Plunger for Cap	28 V	0.4 VA	Through Hole	PC Pin	200000 Cycles	200000 Cycles	On-On	50 °C	-25 °C	Illuminated Standard	DPDT	Stainless Steel
NKK Switches UB25SKG036B-JB	28 V	No Marking			2.9 VDC	LED White	Button Square	28 V	0.4 VA	Through Hole	PC Pin	200000 Cycles	1000000 Cycles	On-Mom	50 °C	-25 °C	Illuminated Standard	DPDT	Spot LED	Clear
NKK Switches UB15NBKW015C-CB	30 V	No Marking	22.4 mm	16.2 mm	1.85 VDC	LED Red	Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	1000000 Cycles	On-Mom	50 °C	-25 °C	Illuminated Standard	SPDT	With Barrier	Red
NKK Switches UB16KKW01N-B	30 V	No Marking	16.2 mm	16.2 mm			Button Square	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	Process Sealed	White
