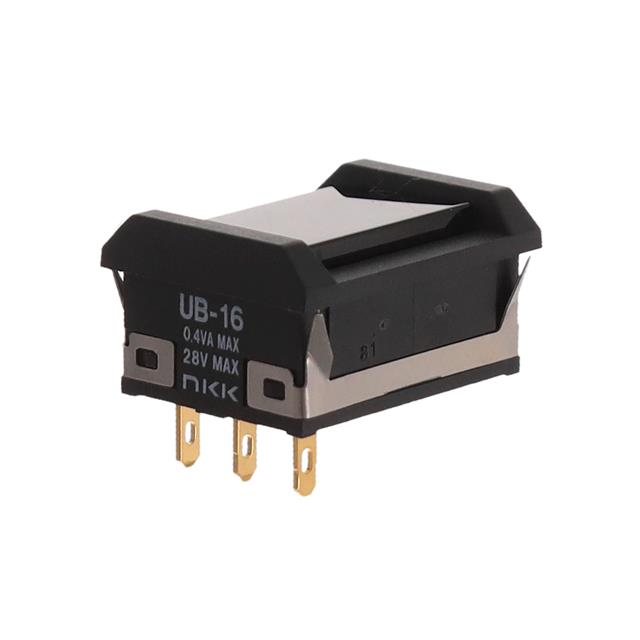

UB16NBKG01N-A

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB16NBKG01N-A

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB16NBKG01N-A

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	With Barrier
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	22.4 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB16SKG Series

...

Part	Voltage Rating - DC	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Illumination Type, Color	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Termination Style	Electrical Life	Mechanical Life	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Type	Circuit	Features	Color - Actuator/Cap
NKK Switches UB26KKG015C	28 V	No Marking	16.2 mm	16.2 mm	1.85 VDC	LED Red	Plunger for Cap	28 V	0.4 VA	Panel Mount Snap-In	Solder Lug	200000 Cycles	200000 Cycles	On-On	50 °C	-25 °C	Illuminated Standard	DPDT	Stainless Steel
NKK Switches UB16SKG03N	28 V	No Marking					Plunger for Cap	28 V	0.4 VA	Through Hole	PC Pin	200000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	Process Sealed
NKK Switches UB26NBKW015C-CB	30 V	No Marking	22.4 mm	16.2 mm	1.85 VDC	LED Red	Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	200000 Cycles	On-On	50 °C	-25 °C	Illuminated Standard	DPDT	With Barrier	Red
NKK Switches UB16NBKW01N-B	30 V	No Marking	22.4 mm	16.2 mm			Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	With Barrier	White
NKK Switches UB15NBKW01N-E	30 V	No Marking	22.4 mm	16.2 mm			Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	1000000 Cycles	On-Mom	70 °C	-20 C	Standard	SPDT	With Barrier	Yellow
NKK Switches UB16NBKG01N-A	28 V	No Marking	22.4 mm	16.2 mm			Rectangular Button	28 V	0.4 VA	Panel Mount Snap-In	Solder Lug	200000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	With Barrier	Black
NKK Switches UB26SKG035D	28 V	No Marking			2 VDC	Amber LED	Plunger for Cap	28 V	0.4 VA	Through Hole	PC Pin	200000 Cycles	200000 Cycles	On-On	50 °C	-25 °C	Illuminated Standard	DPDT	Stainless Steel
NKK Switches UB25SKG036B-JB	28 V	No Marking			2.9 VDC	LED White	Button Square	28 V	0.4 VA	Through Hole	PC Pin	200000 Cycles	1000000 Cycles	On-Mom	50 °C	-25 °C	Illuminated Standard	DPDT	Spot LED	Clear
NKK Switches UB15NBKW015C-CB	30 V	No Marking	22.4 mm	16.2 mm	1.85 VDC	LED Red	Rectangular Button	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	1000000 Cycles	On-Mom	50 °C	-25 °C	Illuminated Standard	SPDT	With Barrier	Red
NKK Switches UB16KKW01N-B	30 V	No Marking	16.2 mm	16.2 mm			Button Square	125 V	5 A	Panel Mount Snap-In	Solder Lug	10000 Cycles	200000 Cycles	On-On	70 °C	-20 C	Standard	SPDT	Process Sealed	White
