V7-6C17D8-000-2

Active

Honeywell Sensing and Productivity Solutions

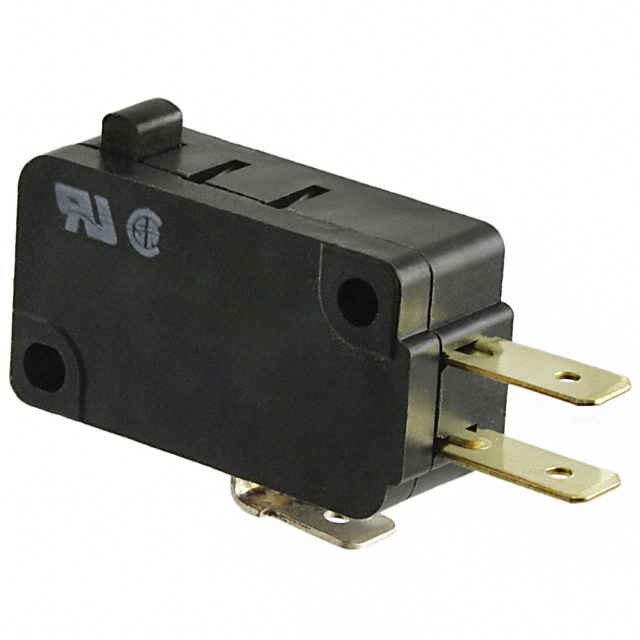

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Basic, Toggle, Rocker Switches Range Guide +1

V7-6C17D8-000-2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

DocumentsDatasheet Basic, Toggle, Rocker Switches Range Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-6C17D8-000-2

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force [Max]	397 gf
Operating Force [Min]	170 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.04 in
Overtravel	1 mm
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	113 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-6C1 Series

Part	Mounting Type	Current Rating (Amps)	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Function	Operating Force	Operating Position	Operating Position	Mechanical Life	Actuator Type	Voltage Rating - AC	Pretravel	Pretravel	Overtravel	Overtravel	Voltage Rating - DC	Differential Travel	Differential Travel	Release Force	Operating Force [Max]	Operating Force [Min]
Honeywell Sensing and Productivity Solutions V7-6C18D8-002	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	413 gf	15.3 mm	0.602 "	10000000 Cycles	Lever Straight	125 V	0.063 in	1.6 mm	0.035 "	0.9 mm	125 VDC
Honeywell Sensing and Productivity Solutions V7-6C17D8-162	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	85 gf	15.2 mm	0.6 in	10000000 Cycles	Lever Straight	125 V	0.45 in	11.4 mm	0.141 in	3.6 mm	125 VDC	4 mm	0.156 in
Honeywell Sensing and Productivity Solutions V7-6C13D8-132	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT			Quick Connect - 0.187" (4.7mm)	On-Mom	93 gf	15.3 mm	0.602 "	10000000 Cycles	Lever Straight	125 V	0.29 in	7.4 mm	0.094 in	2.4 mm	125 VDC	2.6 mm	0.103 in	16 gf
Honeywell Sensing and Productivity Solutions V7-6C17D8-048-1	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	120 gf	14.7 mm	0.579 in	10000000 Cycles	Lever Straight	125 V	0.25 in	6.35 mm	0.125 in	3.2 mm	125 VDC	1.4 mm	0.055 in	19 gf
Honeywell Sensing and Productivity Solutions V7-6C18D8-048	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	141 gf	14.7 mm	0.579 in	10000000 Cycles	Lever Straight	125 V	0.25 in	6.35 mm	0.09 in	2.3 mm	125 VDC	2.2 mm	0.086 in
Honeywell Sensing and Productivity Solutions V7-6C17D8-000-2	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom		14.7 mm	0.579 in	10000000 Cycles	Round (Pin Plunger)	125 V	0.047 in	1.2 mm	0.04 in	1 mm	125 VDC	0.4 mm	0.016 "	113 gf	397 gf	170 gf
Honeywell Sensing and Productivity Solutions V7-6C17D8-263	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	227 gf	18.5 mm	0.73 in	10000000 Cycles	Lever Simulated Roller	125 V	0.09 in	2.3 mm	0.08 in	2.03 mm	125 VDC	1.7 mm	0.065 in	57 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.93
		10	$ 4.09
		25	$ 3.80
		50	$ 3.59
		100	$ 3.50

Description

General part information

V7-6C1 Series

Switch SPDT Chassis Mount
