V7-6C17D8-263

Active

Honeywell Sensing and Productivity Solutions

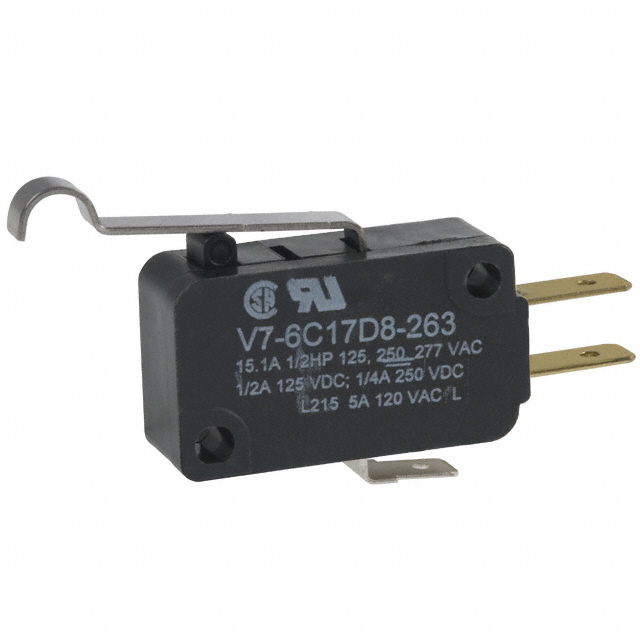

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches Catalog Datasheet

V7-6C17D8-263

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-6C17D8-263

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	1.7 mm
Differential Travel	0.065 in
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	227 gf
Operating Position	0.73 in
Operating Position	18.5 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	2.03 mm
Overtravel	0.08 in
Pretravel	0.09 in
Pretravel	2.3 mm
Release Force	57 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-6C1 Series

Part	Mounting Type	Current Rating (Amps)	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Function	Operating Force	Operating Position	Operating Position	Mechanical Life	Actuator Type	Voltage Rating - AC	Pretravel	Pretravel	Overtravel	Overtravel	Voltage Rating - DC	Differential Travel	Differential Travel	Release Force	Operating Force [Max]	Operating Force [Min]
Honeywell Sensing and Productivity Solutions V7-6C18D8-002	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	413 gf	15.3 mm	0.602 "	10000000 Cycles	Lever Straight	125 V	0.063 in	1.6 mm	0.035 "	0.9 mm	125 VDC
Honeywell Sensing and Productivity Solutions V7-6C17D8-162	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	85 gf	15.2 mm	0.6 in	10000000 Cycles	Lever Straight	125 V	0.45 in	11.4 mm	0.141 in	3.6 mm	125 VDC	4 mm	0.156 in
Honeywell Sensing and Productivity Solutions V7-6C13D8-132	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT			Quick Connect - 0.187" (4.7mm)	On-Mom	93 gf	15.3 mm	0.602 "	10000000 Cycles	Lever Straight	125 V	0.29 in	7.4 mm	0.094 in	2.4 mm	125 VDC	2.6 mm	0.103 in	16 gf
Honeywell Sensing and Productivity Solutions V7-6C17D8-048-1	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	120 gf	14.7 mm	0.579 in	10000000 Cycles	Lever Straight	125 V	0.25 in	6.35 mm	0.125 in	3.2 mm	125 VDC	1.4 mm	0.055 in	19 gf
Honeywell Sensing and Productivity Solutions V7-6C18D8-048	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	141 gf	14.7 mm	0.579 in	10000000 Cycles	Lever Straight	125 V	0.25 in	6.35 mm	0.09 in	2.3 mm	125 VDC	2.2 mm	0.086 in
Honeywell Sensing and Productivity Solutions V7-6C17D8-000-2	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom		14.7 mm	0.579 in	10000000 Cycles	Round (Pin Plunger)	125 V	0.047 in	1.2 mm	0.04 in	1 mm	125 VDC	0.4 mm	0.016 "	113 gf	397 gf	170 gf
Honeywell Sensing and Productivity Solutions V7-6C17D8-263	Chassis Mount	15 A 500 mA	100000 Cycles	SPDT	85 °C	-40 °C	Quick Connect - 0.187" (4.7mm)	On-Mom	227 gf	18.5 mm	0.73 in	10000000 Cycles	Lever Simulated Roller	125 V	0.09 in	2.3 mm	0.08 in	2.03 mm	125 VDC	1.7 mm	0.065 in	57 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.13
		10	$ 3.42
		25	$ 3.17
		50	$ 3.00
		100	$ 2.83
		250	$ 3.54
		300	$ 2.60
		500	$ 3.35
		1000	$ 3.16

Description

General part information

V7-6C1 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

V7 Series Basic Switches Catalog

Datasheet
