R30Y-1000
ActiveOK INDUSTRIES

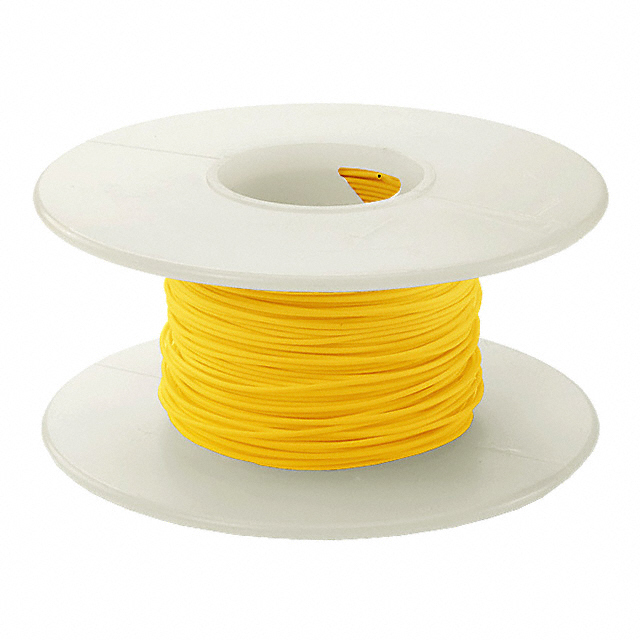

WIRE, WRAPPING WIRE, PVDF, YELLOW, 30 AWG, 1000 FT
Deep-Dive with AI
Search across all available documentation for this part.
R30Y-1000
ActiveOK INDUSTRIES
WIRE, WRAPPING WIRE, PVDF, YELLOW, 30 AWG, 1000 FT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R30Y-1000 |
|---|---|
| Conductor Diameter [diameter] | 0.25 mm |
| Conductor Diameter [diameter] | 0.01 in |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.019 in |
| Jacket (Insulation) Diameter [diameter] | 0.5 mm |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket Color | Yellow |
| Length | 1000 ft |
| Length | 304.8 m |
| Operating Temperature | 105 C |
| Ratings | VW-1, UL Style 1423 |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R30Y Series
The R30Y-1000 is a 1000ft yellow Wire Wrapping Wire with silver-plated copper conductor and KYNAR® insulation. The OFHC (oxygen free high conductivity) provides a flexible yet abrasion resistant wire.
