R30Y-0100

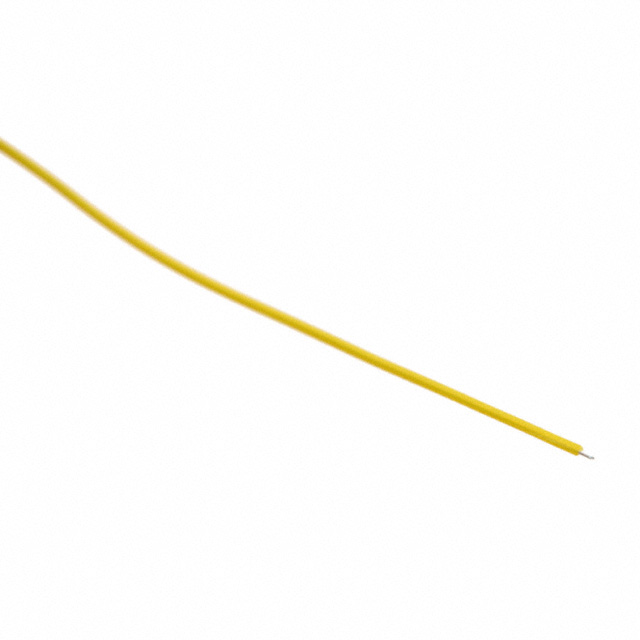

ActiveWIRE, WRAPPING WIRE, PVDF, YELLOW, 30 AWG, 100 FT
Deep-Dive with AI
Search across all available documentation for this part.
R30Y-0100
ActiveWIRE, WRAPPING WIRE, PVDF, YELLOW, 30 AWG, 100 FT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R30Y-0100 |
|---|---|
| Conductor Diameter [diameter] | 0.25 mm |
| Conductor Diameter [diameter] | 0.01 in |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.019 in |
| Jacket (Insulation) Diameter [diameter] | 0.5 mm |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Thickness | 0.004 in |
| Jacket (Insulation) Thickness | 0.09 mm |
| Jacket Color | Yellow |
| Length | 30.5 m |
| Length [x] | 100 ft |
| Operating Temperature | 105 C |
| Ratings | VW-1, UL Style 1423 |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R30Y Series
The R30Y-0100 is a Wrapping Wire with 30AWG silver plated copper conductor and a yellow PVDF insulation. The Kynar® insulated wire is ideally suited for wire wrapping and many other applications, including production line work. This wire is OFHC (oxygen-free high conductivity) and provides a flexible yet abrasion resistant wire. The wire is UL style 1423 rated standards.
