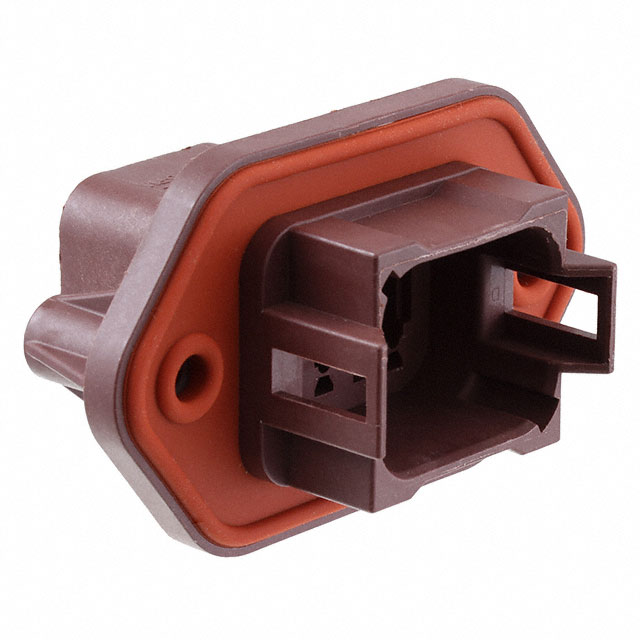

AT04-08PD-PM12

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS PANEL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS PANEL MNT

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Insulation Material	Note	Fastening Type	Number of Positions	Color	Contact Termination	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Applications	Number of Positions Loaded	Contact Material	Insulation Height	Insulation Height	Shrouding	Ingress Protection	Insulation Color	Current Rating (Amps)	Contact Shape	Contact Finish - Mating	Style	Termination
Amphenol Sine Systems Corp AT04-08PD-MM01	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-08PD-SS01	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-08PD-PM12	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C		Mounting Flange Sealed
Amphenol Sine Systems Corp AT04-08PD-BM03	2	Thermoplastic		Latch Holder	8			Receptacle	Male Pin	-55 °C	125 °C	Through Hole		Automotive General Purpose Industrial	All	Copper Alloy	0.835 "	21.21 mm	Shrouded - 4 Wall	IP67	Brown	13 A	Circular	Nickel	Board to Cable/Wire	Solder
Amphenol Sine Systems Corp AT04-08PD-RD01	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C	Free Hanging (In-Line)	Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Receptacle Brown
