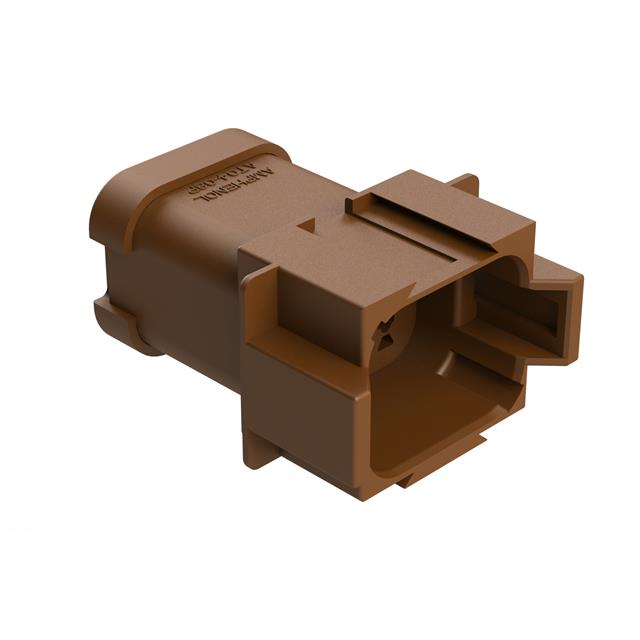

AT04-08PD-MM01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Insulation Material	Note	Fastening Type	Number of Positions	Color	Contact Termination	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Applications	Number of Positions Loaded	Contact Material	Insulation Height	Insulation Height	Shrouding	Ingress Protection	Insulation Color	Current Rating (Amps)	Contact Shape	Contact Finish - Mating	Style	Termination
Amphenol Sine Systems Corp AT04-08PD-MM01	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-08PD-SS01	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-08PD-PM12	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C		Mounting Flange Sealed
Amphenol Sine Systems Corp AT04-08PD-BM03	2	Thermoplastic		Latch Holder	8			Receptacle	Male Pin	-55 °C	125 °C	Through Hole		Automotive General Purpose Industrial	All	Copper Alloy	0.835 "	21.21 mm	Shrouded - 4 Wall	IP67	Brown	13 A	Circular	Nickel	Board to Cable/Wire	Solder
Amphenol Sine Systems Corp AT04-08PD-RD01	2	Thermoplastic	Contacts Not Included	Latch Holder	8	Brown	Crimp	Receptacle	Male Pin	-55 °C	125 °C	Free Hanging (In-Line)	Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Receptacle Brown
