29SM-K711-00V

Active

NMB TECHNOLOGIES

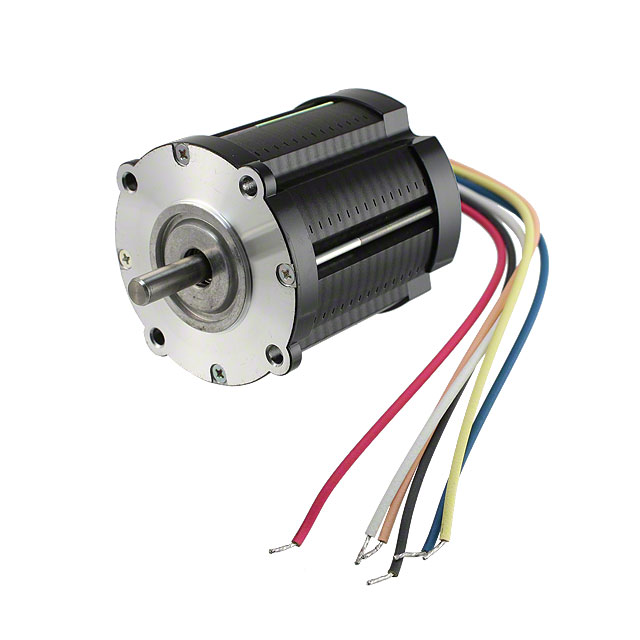

STEPPER MOTOR, STANDARD HYBRID, 1550 MN-M, 3.1 A

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

STEPPER MOTOR, STANDARD HYBRID, 1550 MN-M, 3.1 A

Technical Specifications

Parameters and characteristics for this part

Specification	29SM-K711-00V

Coil Resistance	1 Ohms
Coil Type	Unipolar
Current Rating (Amps)	3 A
Diameter - Shaft [diameter]	0.315 in
Diameter - Shaft [diameter]	8 mm
Features	Round Shaft
Length - Shaft and Bearing	0.984 in
Length - Shaft and Bearing	25 mm
Mounting Hole Spacing	47.14 mm
Mounting Hole Spacing	1.856 in
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Rotor Inertia	660 gcm˛
Size / Dimension [diameter]	2.795 in
Size / Dimension [diameter]	71 mm
Step Angle	1.8 °
Steps per Revolution	200
Termination Style	Wire Leads
Torque - Holding (oz-in / mNm)	1450 mNm
Torque - Holding (oz-in / mNm)	205.36 oz-in
Type	Hybrid
Voltage - Rated	24 VDC
Weight	1.4 kg
Weight	3.1 lbs

Part	Rotor Inertia	Mounting Hole Spacing	Mounting Hole Spacing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Size / Dimension [diameter]	Size / Dimension [diameter]	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Type	Weight	Weight	Length - Shaft and Bearing	Length - Shaft and Bearing	Current Rating (Amps)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Coil Type	Step Angle	Coil Resistance	Termination Style	Voltage - Rated	Steps per Revolution	Features	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]
NMB TECHNOLOGIES 29SM-K711-00V	660 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	1450 mNm	205.36 oz-in	Hybrid	1.4 kg	3.1 lbs	0.984 in	25 mm	3 A	-10 °C	50 °C	Unipolar	1.8 °	1 Ohms	Wire Leads	24 VDC	200	Round Shaft
NMB TECHNOLOGIES 29SM-K379-00V	330 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	820 mNm	116.14 oz-in	Hybrid	861.8 g	1.9 lbs	0.984 in	25 mm	1.9 A	-10 °C	50 °C	Unipolar	1.8 °	1.75 Ohms	Wire Leads	24 VDC	200	Round Shaft
NMB TECHNOLOGIES 29SM-K242BT01CA		47.14 mm	1.856 in	0.236 in	6 mm	2.795 in	71 mm			Hybrid						-10 °C	50 °C	Bipolar	1.8 °		Connector	24 VDC	200	Round Shaft	0.453 in	11.5 mm
NMB TECHNOLOGIES 29SM-K138-99V	515 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	1200 mNm	169.96 oz-in	Hybrid Dual Shaft	1.2 kg	2.6 lbs	0.984 in	25 mm	2.6 A	-10 °C	50 °C	Unipolar	1.8 °	1.25 Ohms	Wire Leads	24 VDC	200	Round Shaft
NMB TECHNOLOGIES 29SM-K550-00V	165 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	380 mNm	53.82 oz-in	Hybrid	589.7 g	1.3 lbs	0.984 in	25 mm	1.5 A	-10 °C	50 °C	Unipolar	1.8 °		Wire Leads	24 VDC	200	Round Shaft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 91.64
Newark	Each	5	$ 127.91

General part information

Unipolar Stepper Motor Hybrid Frame Size 200.0 Step 3 A 24VDC
