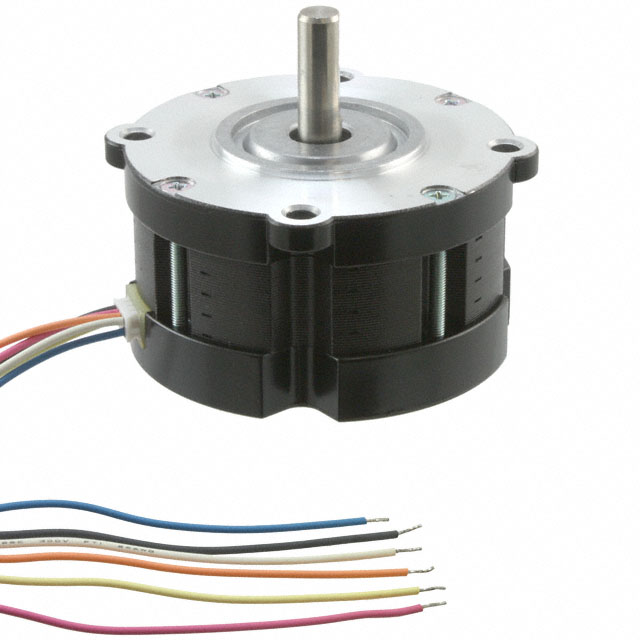

29SM-K550-00V
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, STANDARD HYBRID, 380 MN-M, 1.5 A
Deep-Dive with AI
Search across all available documentation for this part.
29SM-K550-00V
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, STANDARD HYBRID, 380 MN-M, 1.5 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 29SM-K550-00V |
|---|---|
| Coil Type | Unipolar |
| Current Rating (Amps) | 1.5 A |
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing | 0.984 in |
| Length - Shaft and Bearing | 25 mm |
| Mounting Hole Spacing | 47.14 mm |
| Mounting Hole Spacing | 1.856 in |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Rotor Inertia | 165 gcm˛ |
| Size / Dimension [diameter] | 2.795 in |
| Size / Dimension [diameter] | 71 mm |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 53.82 oz-in |
| Torque - Holding (oz-in / mNm) | 380 mNm |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
| Weight | 589.7 g |
| Weight | 1.3 lbs |
29SM Series
| Part | Rotor Inertia | Mounting Hole Spacing | Mounting Hole Spacing | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Size / Dimension [diameter] | Size / Dimension [diameter] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Type | Weight | Weight | Length - Shaft and Bearing | Length - Shaft and Bearing | Current Rating (Amps) | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Coil Type | Step Angle | Coil Resistance | Termination Style | Voltage - Rated | Steps per Revolution | Features | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 660 gcm˛ | 47.14 mm | 1.856 in | 0.315 in | 8 mm | 2.795 in | 71 mm | 1450 mNm | 205.36 oz-in | Hybrid | 1.4 kg | 3.1 lbs | 0.984 in | 25 mm | 3 A | -10 °C | 50 °C | Unipolar | 1.8 ° | 1 Ohms | Wire Leads | 24 VDC | 200 | Round Shaft | ||
NMB TECHNOLOGIES | 330 gcm˛ | 47.14 mm | 1.856 in | 0.315 in | 8 mm | 2.795 in | 71 mm | 820 mNm | 116.14 oz-in | Hybrid | 861.8 g | 1.9 lbs | 0.984 in | 25 mm | 1.9 A | -10 °C | 50 °C | Unipolar | 1.8 ° | 1.75 Ohms | Wire Leads | 24 VDC | 200 | Round Shaft | ||
NMB TECHNOLOGIES | 47.14 mm | 1.856 in | 0.236 in | 6 mm | 2.795 in | 71 mm | Hybrid | -10 °C | 50 °C | Bipolar | 1.8 ° | Connector | 24 VDC | 200 | Round Shaft | 0.453 in | 11.5 mm | |||||||||
NMB TECHNOLOGIES | 515 gcm˛ | 47.14 mm | 1.856 in | 0.315 in | 8 mm | 2.795 in | 71 mm | 1200 mNm | 169.96 oz-in | Hybrid Dual Shaft | 1.2 kg | 2.6 lbs | 0.984 in | 25 mm | 2.6 A | -10 °C | 50 °C | Unipolar | 1.8 ° | 1.25 Ohms | Wire Leads | 24 VDC | 200 | Round Shaft | ||
NMB TECHNOLOGIES | 165 gcm˛ | 47.14 mm | 1.856 in | 0.315 in | 8 mm | 2.795 in | 71 mm | 380 mNm | 53.82 oz-in | Hybrid | 589.7 g | 1.3 lbs | 0.984 in | 25 mm | 1.5 A | -10 °C | 50 °C | Unipolar | 1.8 ° | Wire Leads | 24 VDC | 200 | Round Shaft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29SM Series
Unipolar Stepper Motor Hybrid Frame Size 200.0 Step 1.5 A 24VDC
