RB22P04C10G

Active

Serpac

PLASTIC ENCLOSURE, JUNCTION BOX, POLYCARBONATE, 35.05 MM, 50 MM, 52 MM, IP67

Search across all available documentation for this part.

Active

Serpac

PLASTIC ENCLOSURE, JUNCTION BOX, POLYCARBONATE, 35.05 MM, 50 MM, 52 MM, IP67

Technical Specifications

Parameters and characteristics for this part

Specification	RB22P04C10G

Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	1.38 in
Height [z]	35.05 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	52.07 mm
Size / Dimension [x]	2.05 "
Size / Dimension [y]	50.04 mm
Size / Dimension [y]	1.97 "
Thickness	0.12 in
Thickness	3.05 mm

Part	Height [z]	Height [z]	Container Type	Material Flammability Rating	Material	Ratings	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Thickness	Color
Serpac RB22P04C10G	1.38 in	35.05 mm	Box	UL94 V-0	Plastic Polycarbonate	IP67 NEMA 4	Cover Included	52.07 mm	50.04 mm	2.05 "	1.97 "	0.12 in	3.05 mm	Clear Cover/Door Gray
Serpac RB22P04C10B	1.38 in	35.05 mm	Box	UL94 V-0	Plastic Polycarbonate	IP67 NEMA 4	Cover Included	52.07 mm	50.04 mm	2.05 "	1.97 "	0.12 in	3.05 mm	Black Clear Cover/Door
Serpac RB22P04C10C	1.38 in	35.05 mm	Box	UL94 V-0	Plastic Polycarbonate	IP67 NEMA 4	Cover Included	52.07 mm	50.04 mm	2.05 "	1.97 "	0.12 in	3.05 mm	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

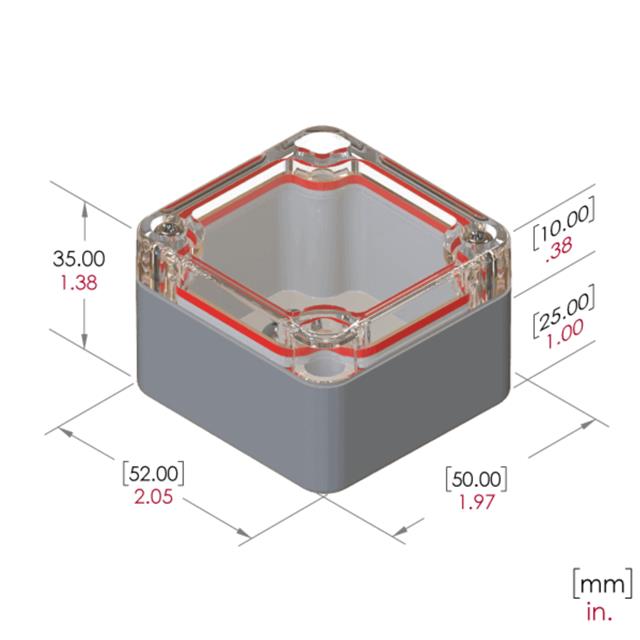

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 2.050" L x 1.970" W (52.07mm x 50.04mm) X 1.380" (35.05mm)

Technical documentation and resources

No documents available
